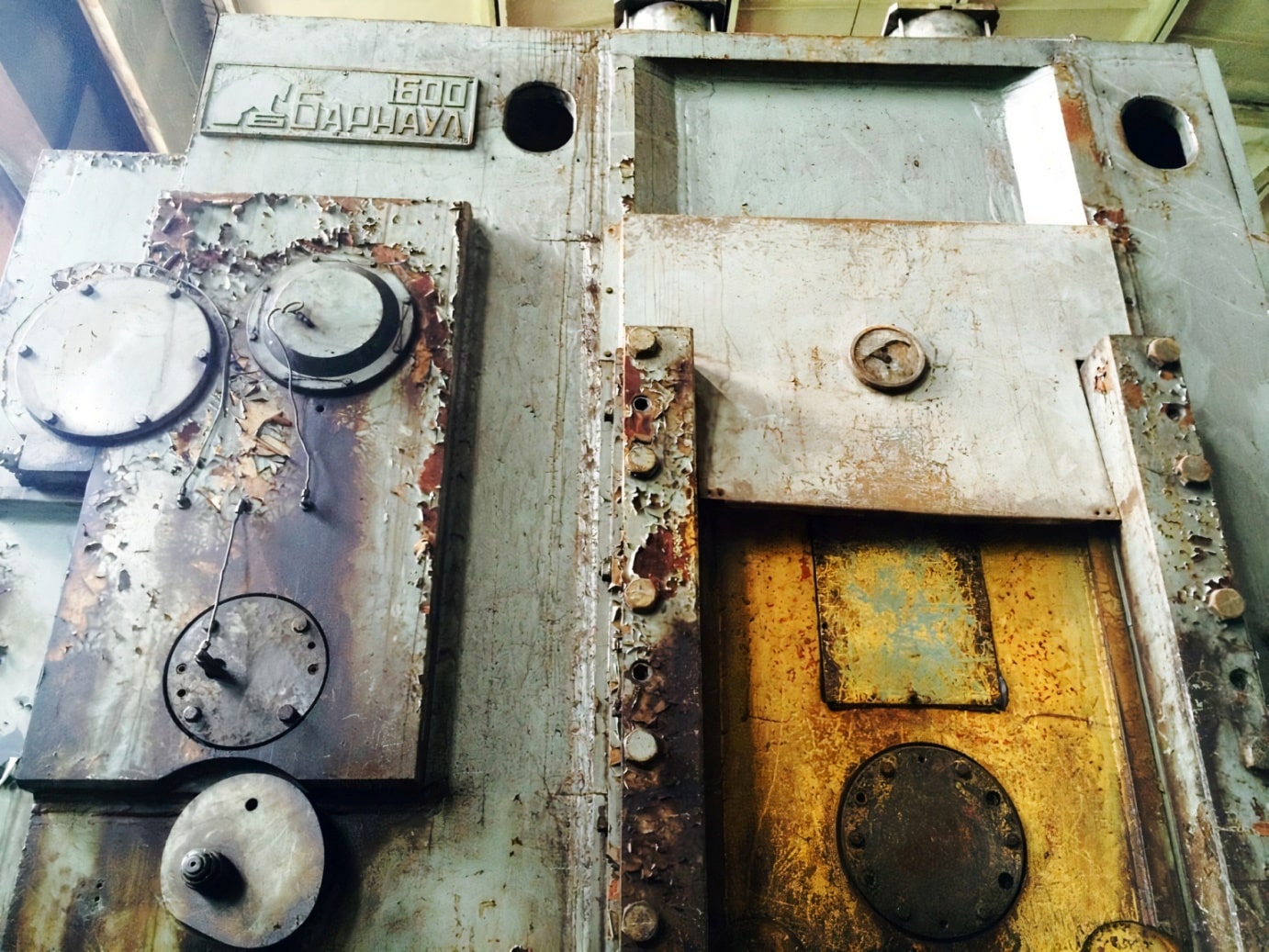

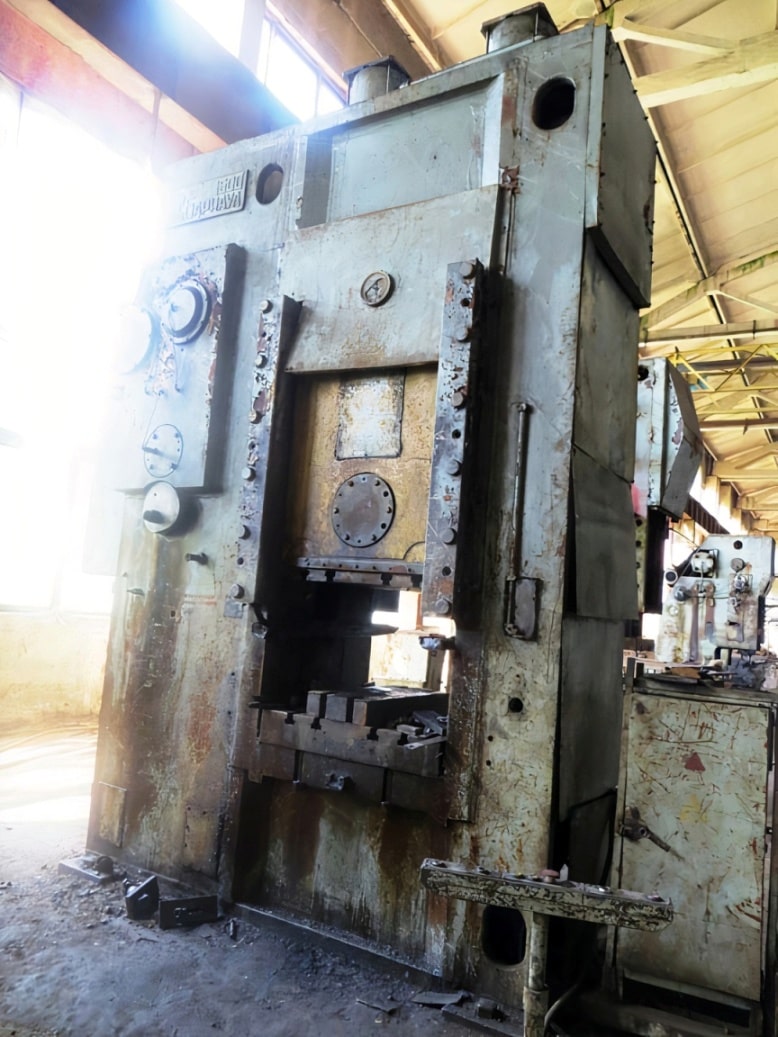

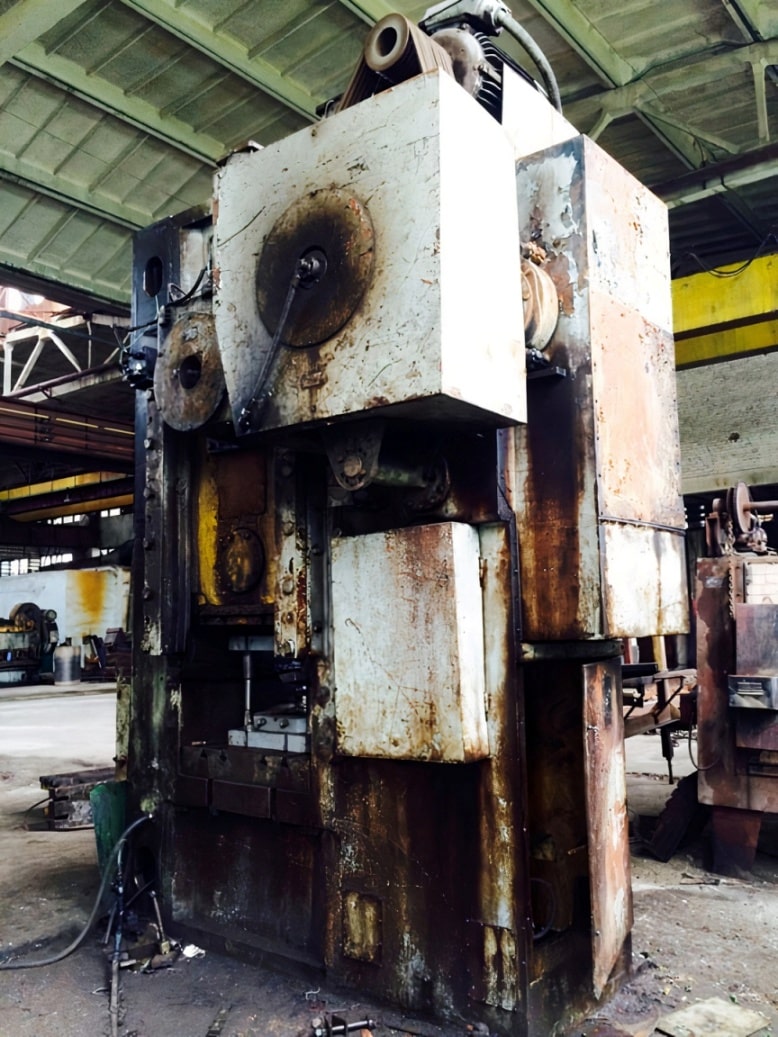

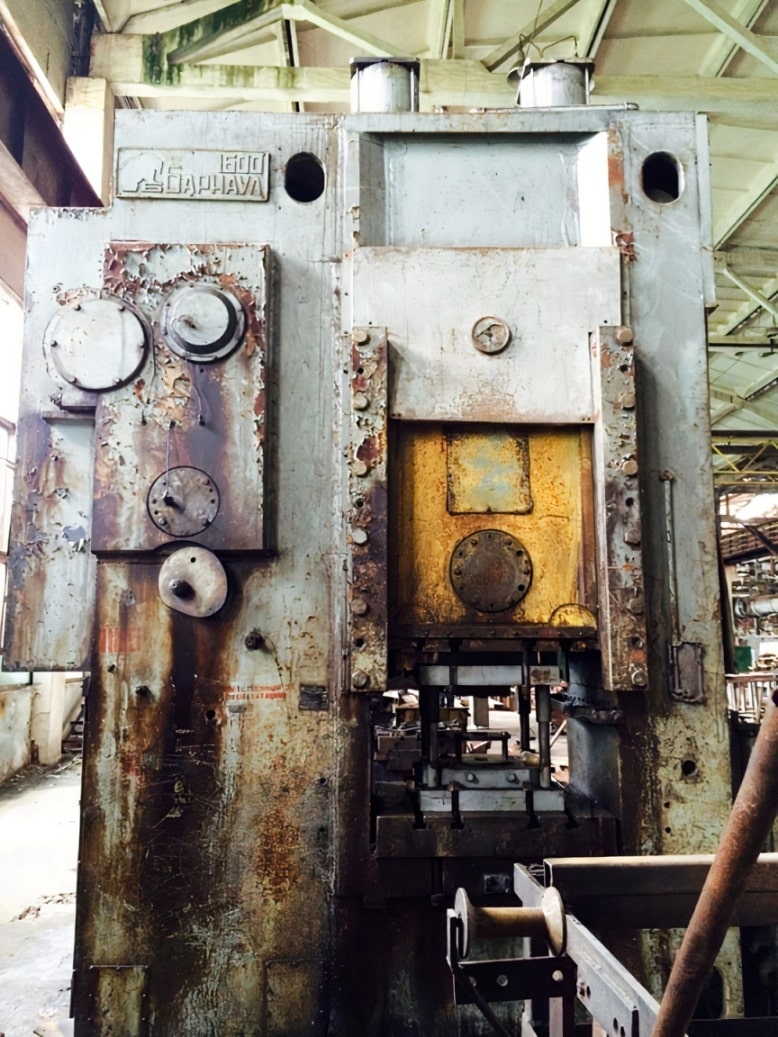

ナックルジョイントプレス Barnaul KB8342 - 1600 トン
仕様 (EN) -
ナックルジョイントプレス Barnaul KB8342 - 1600 トン (ID: S85239)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8342 |
| Year of manufacture | 1986 |
| Nominal effort | 1600 ton |
| Slide stroke | 180 mm |
| Number of strokes per minute | 25 |
| Single stroke per minute | 16 |
| Shut height | 510 mm |
| Bolster plate-to-ram adjustable stroke | 16 |
| Table size | 1000 x 1000 mm |
| Slide dimensions | 860 x 900 mm |
| Bolster plate thickness | 160 mm |
| Lower knockout | |
| -Stroke | 110 mm |
| -Force | 500 kN |
| Upper knockout | |
| -Stroke | 16 mm |
| -Force | 160 kN |
| Main motor | 60 kW |
| Overall dimensions | 3480 x 2600 x 4110 mm |
| Weight | 45 ton |
