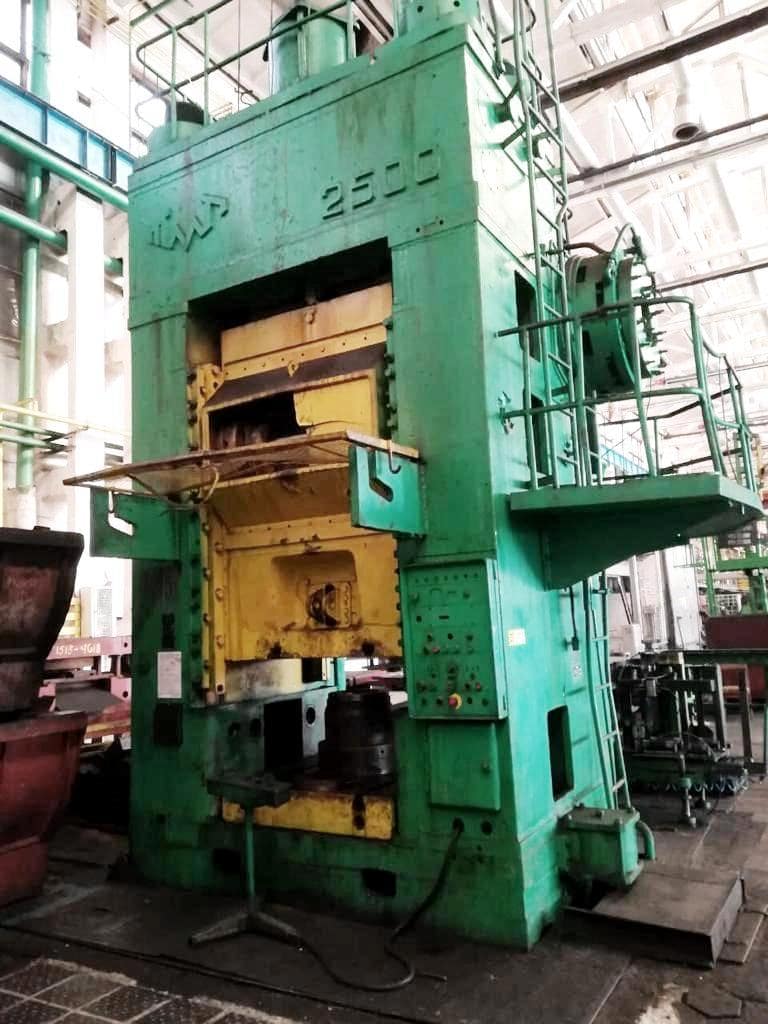

ナックルジョイントプレス TMP Voronezh K504.003.844 - 2500 トン
仕様 (EN) -
ナックルジョイントプレス TMP Voronezh K504.003.844 - 2500 トン (ID: 75578)
| Type | Knuckle joint press |
| Manufacturer | TMP Voronezh |
| Model | K504.003.844 |
| Nominal force | 2500 tons |
| Ram stroke | 190 mm |
| Number of strokes in 1 minute | 14-20 |
| Shut height | 800 mm |
| Bolster plate-to-ram adjustable stroke | 15 |
| Ram course in bottom position with max. power | 4,5 |
| Table size | 1250 x 1400 mm |
| Ram size | |
| Front-to-back | 900 mm |
| Left-to-right | 1250 mm |
| Lower knockout | |
| Stroke | 50 mm |
| Force | 100 kN |
| Upper knockout | |
| Stroke | 40 mm |
| Force | 100 kN |
| Main motor | 77 kW, 380 V |
| Overall dimensions | 4770 x 3050 x 5890 mm |
| Weight | 125 tons |
