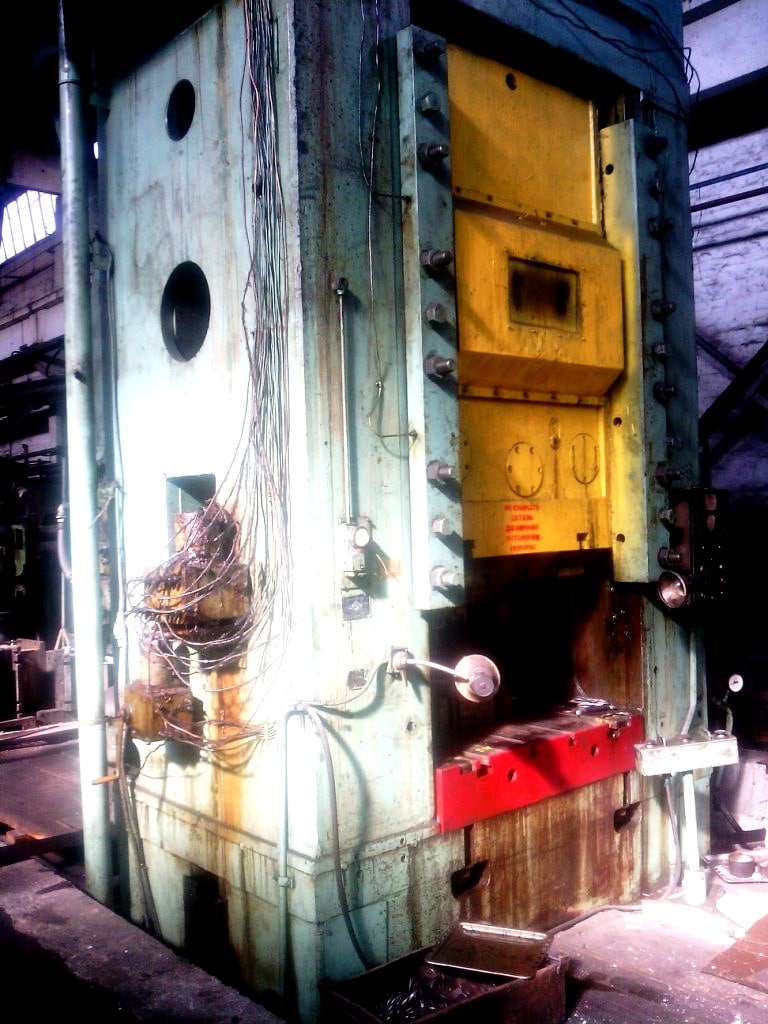

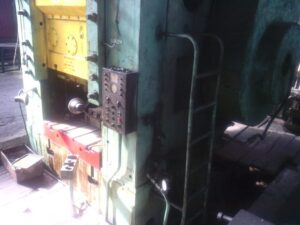

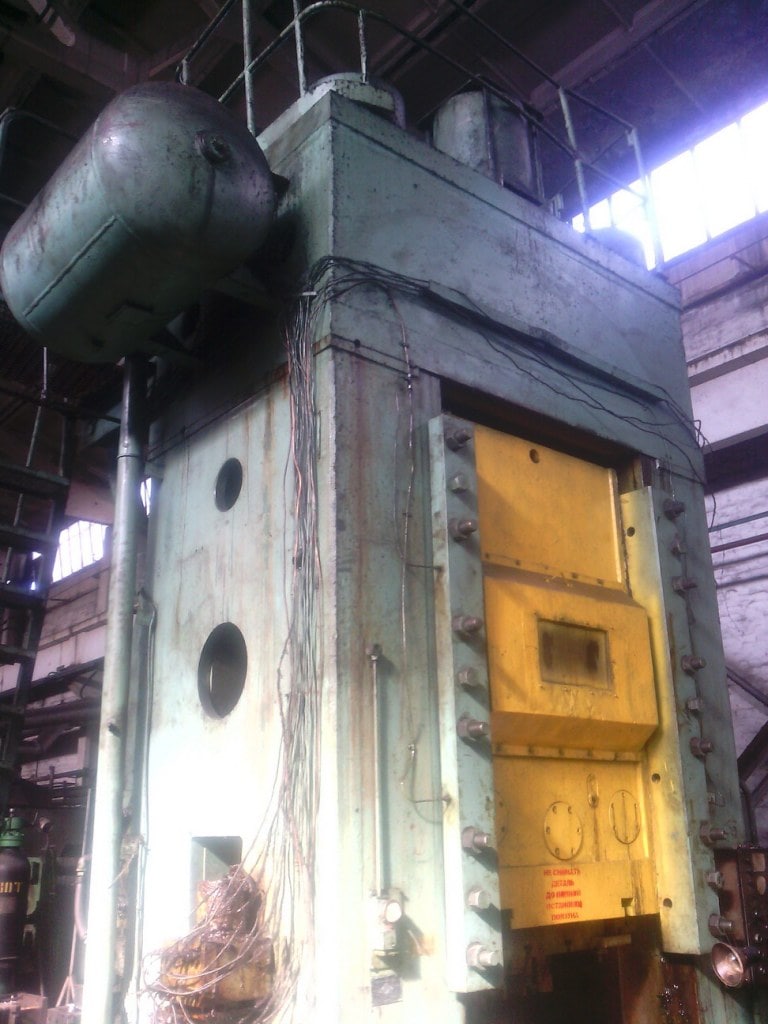

ナックルジョイントプレス TMP Voronezh K8344 - 2500 トン
仕様 (EN) -
ナックルジョイントプレス TMP Voronezh K8344 - 2500 トン (ID: S78571)
| Type | Knuckle joint press |
| Manufacturer | TMP Voronezh |
| Model | K8344 |
| Nominal force | 2500 tons |
| Ram stroke | 190 mm |
| Number of strokes in 1 minute | 14-20 |
| Shut height | 800 mm |
| Bolster plate to ram adjustable stroke | 20 |
| Ram course in bottom position with max. power | 4,5 |

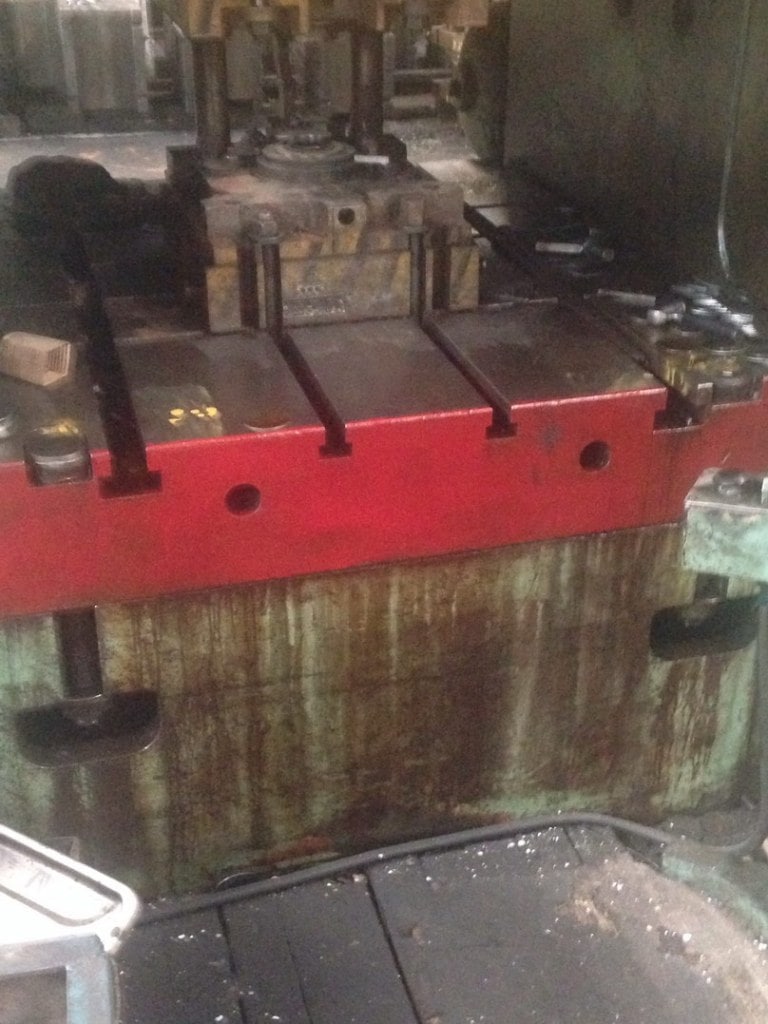

| Table size | 1250 x 1400 mm |
| Ram size | |
| Front to back | 900 mm |
| Left to right | 1250 mm |
| Lower knockout | |
| Stroke | 50 mm |
| Force | 100 kN |
| Upper knockout | |
| Stroke | 40 mm |
| Force | 100 kN |
| Main motor | 77 kW, 380 V |
| Overall dimensions | 4770 x 3050 x 5890 mm |
| Weight | 97715 kg |
