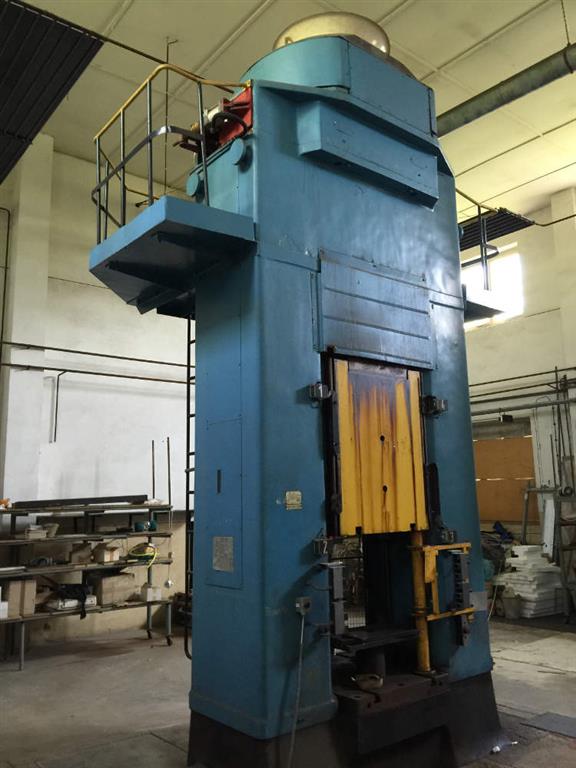

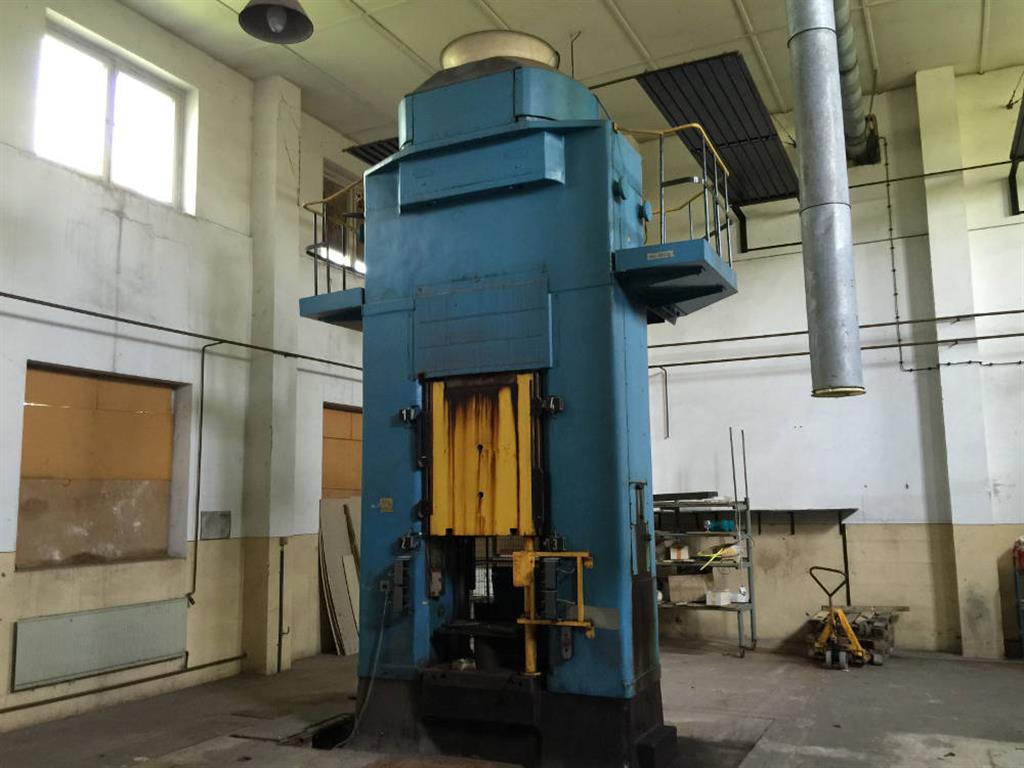

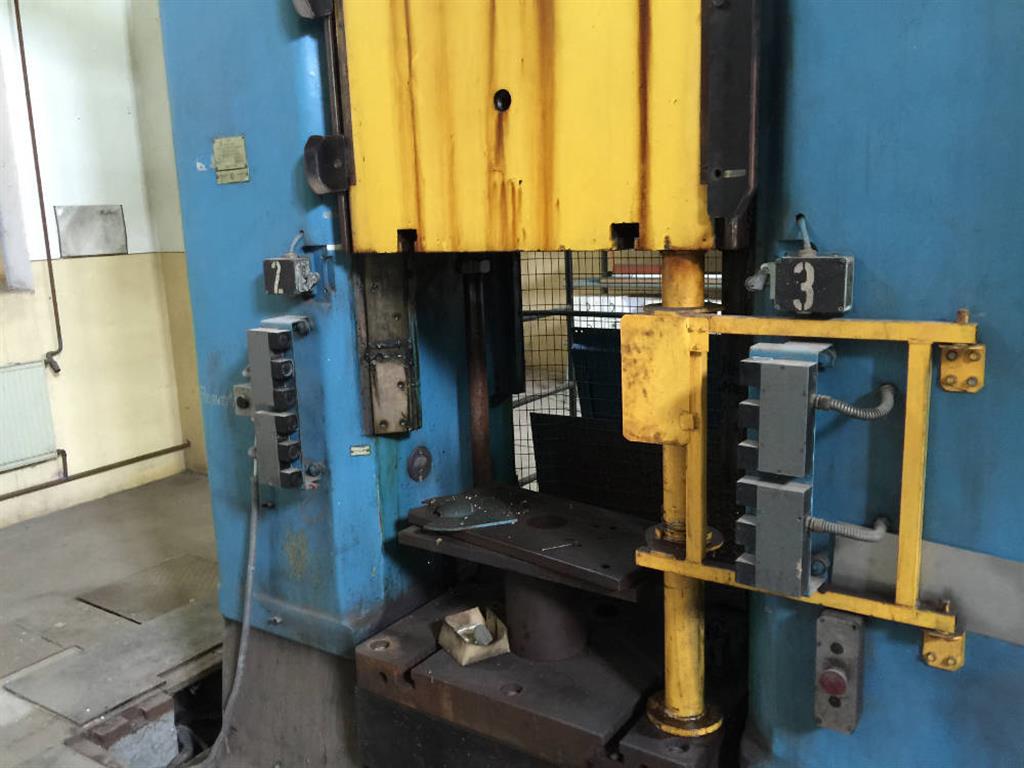

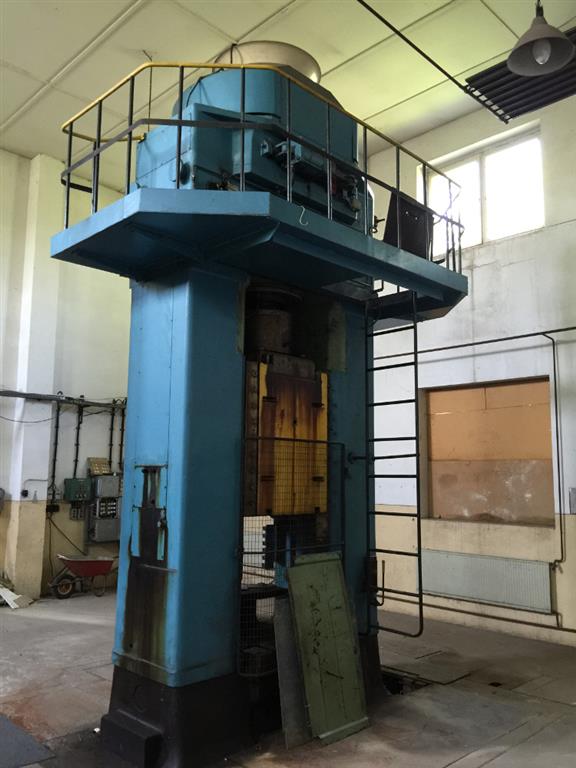

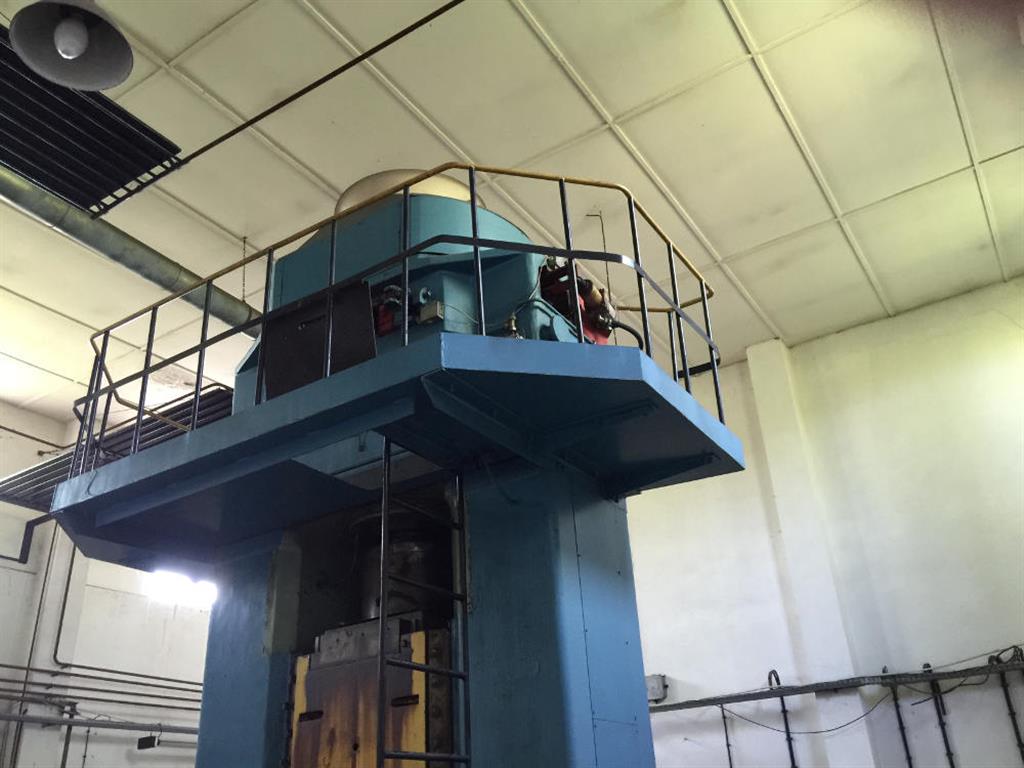

ねじプレス Chimkent F1738 - 630 トン
仕様 (EN) - ねじプレス Chimkent F1738 - 630 トン (ID: 75365)
| Type | Screw press |
| Manufacturer | Chimkent |
| Model | F1738 |
| Year of manufacture | 1986 |
| Type of control | conventional |
| Pressure | 650 ton |
| Max. ram stroke | 520 mm |
| Stroke per minute | minimum 25 Hübe / min |
| Table-size | 1000 x900 mm |
| Surface area of ram | 800 x 800 mm |
| Distance between columns | 800 mm |
| Dayligth | < 500 mm |
| Height over floor | 6155 mm |
| Total height | 6655 mm |
| Total power requirement | 90 kW |
| Weight of the machine ca. | 45 t |
| Dimensions | H — 6,7 x B — 2,5 x T — 1,0 m |
