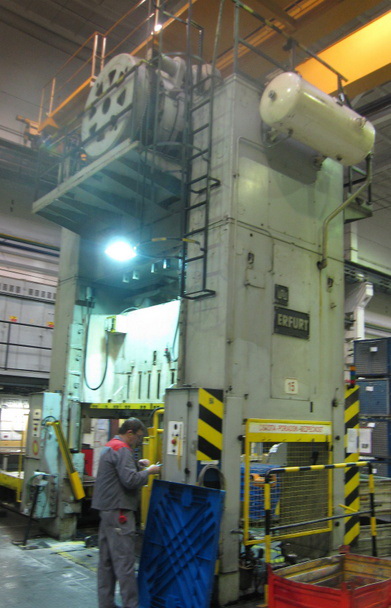

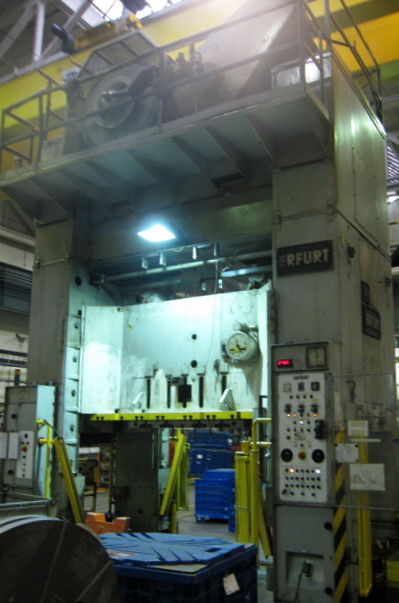

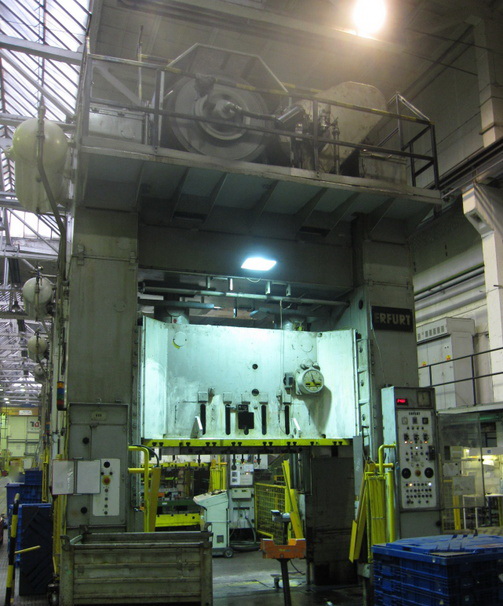

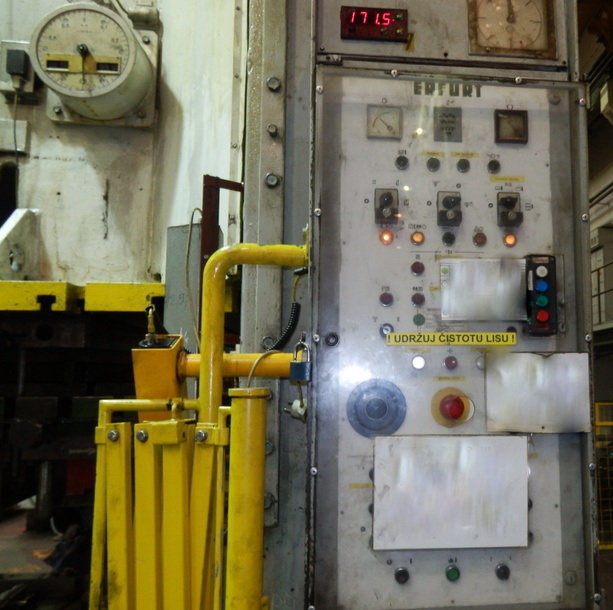

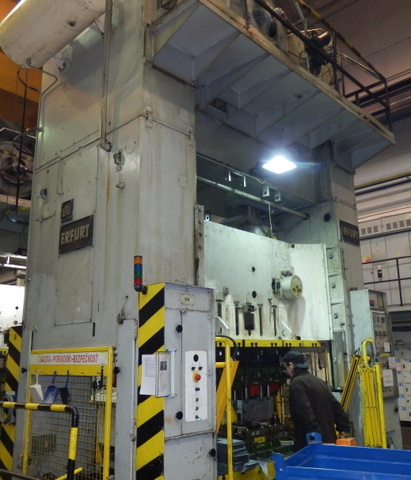

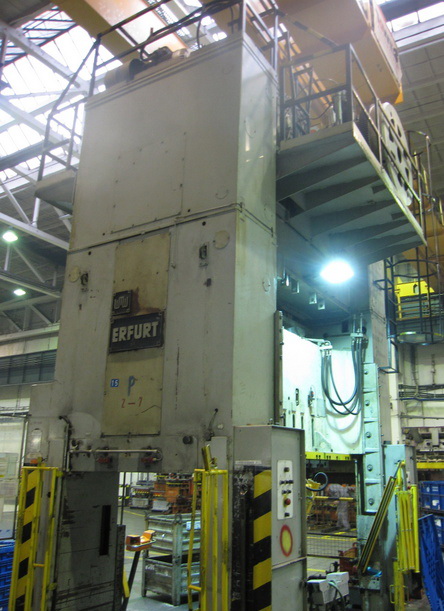

プレス機 Erfurt PKZZ IV 315.1 TS - 315 トン
仕様 (EN) -
プレス機 Erfurt PKZZ IV 315.1 TS - 315 トン (ID: 75541)
| Type | Stamping press |
| Manufacturer | Erfurt |
| Model | PKZZ IV 315.1 TS |
| Capacity | 315 Tons |
| Max. piston force | 3150 kN |
| with Distance before U.T. | 12.5 mm |
| The Force on the piston | 1100 kN |
| with Distance before U.T. | 160 mm |
| Number of strokes when idling | 25 / min |
| Piston stroke | 400 mm |
| Stroke max. | 160 mm |
| Adjustable stroke | 160 mm |
| Tensile strength max. | 630 kN |
| Backward force up to | 630 kN |
| The size of the side windows | 1460 x 1460 mm |
