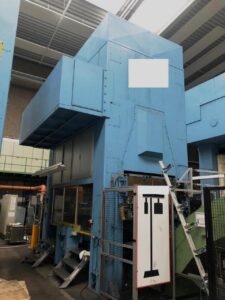

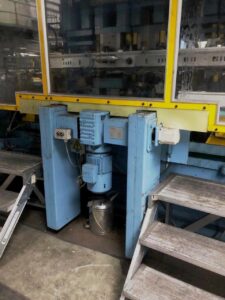

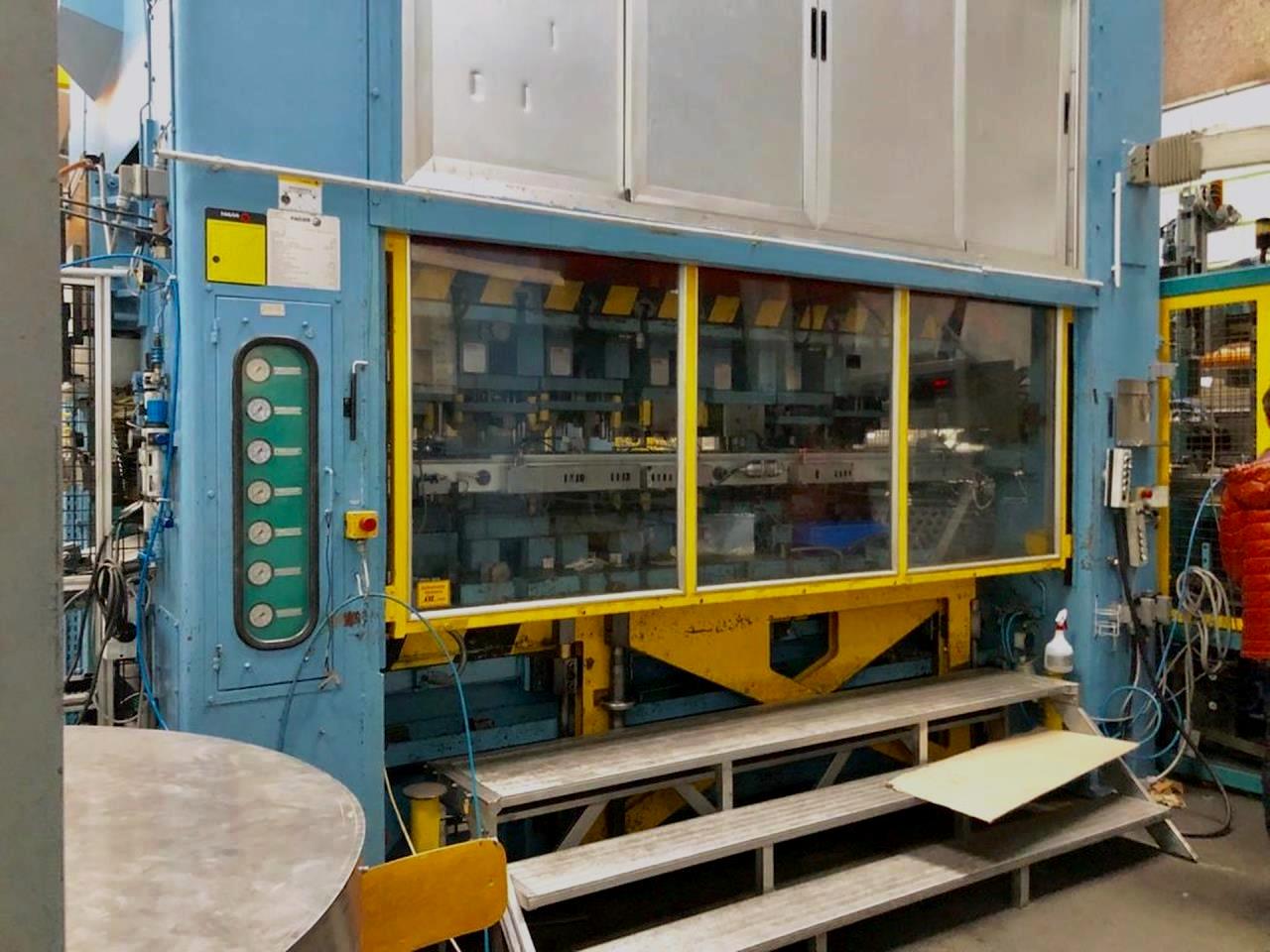

板金プレス Fagor TEM2-400-2500-1500 - 400 トン
仕様 (EN) -
板金プレス Fagor TEM2-400-2500-1500 - 400 トン (ID: 75936)
| Type | Sheet stamping press |
| Manufacturer | Fagor |
| Model | TEM2-400-2500-1500 |
| Year of manufacture | 1999 |
| Pressure | 400 tot |
| Stroke | 12-40 s/min |
| Table surface | 2500 x 1500 mm |
| Slide adjustment | 100 mm |
| Slide stroke | 300 mm |
| Fixed stroke | 300 mm |
| Slide surface | 2500 x 1500 mm |
| Distance table to slide nose (max.) | 800 mm |
| Passage between the supports | |
| — Longitudinal | 3240 mm |
| — Lateral | 1600 mm |
| Air connect | 5.5 bar |
| Total installed power | 40 kW |
| Machine’s weight about | 70000 kg |
| Overall dimensions machine | |
| — Length | 4300 mm |
| — Width | 2500 mm |
| — Height | 7000 mm |
