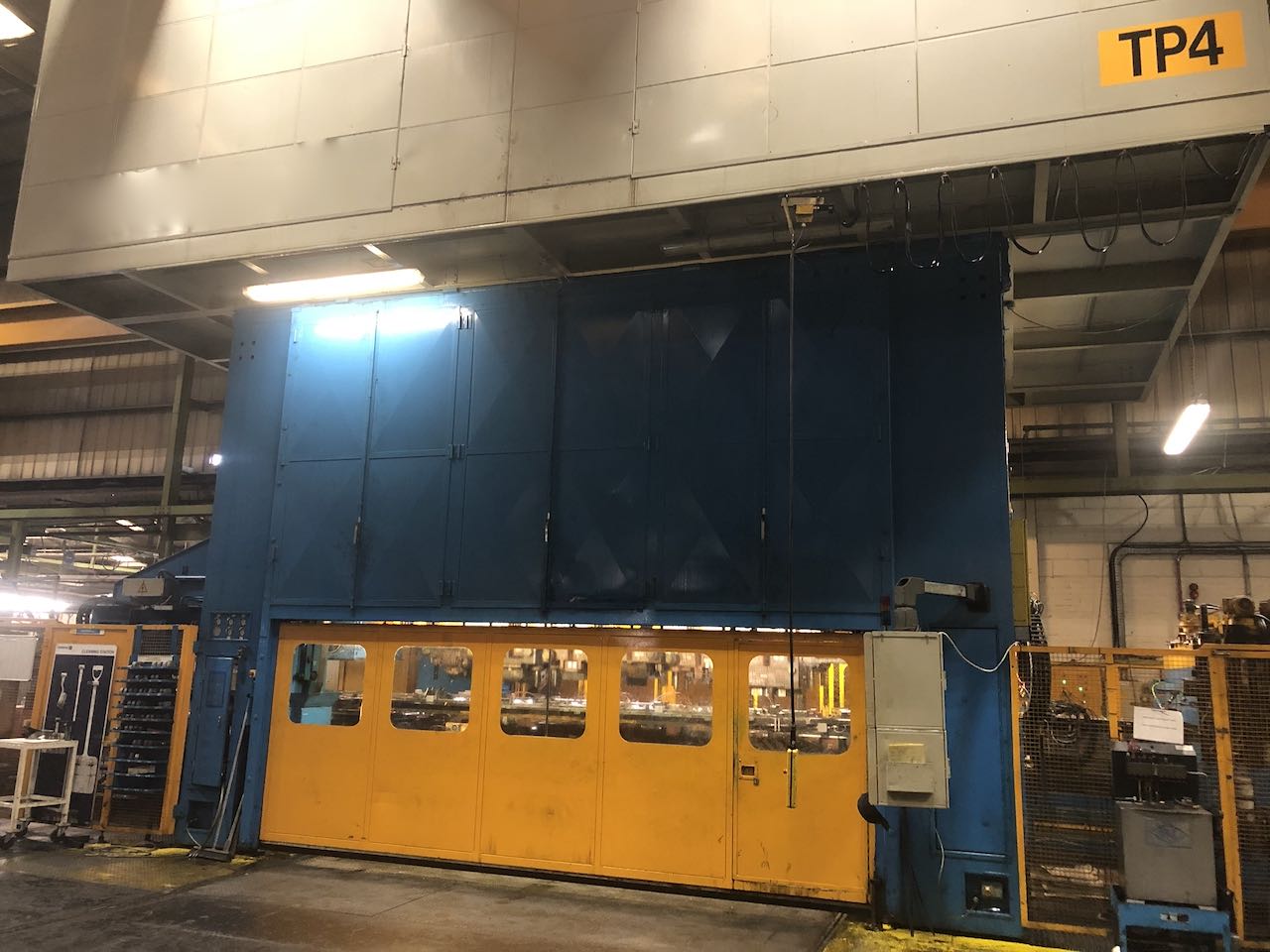

プレス機 Rovetta S4-16000-5000x2400/E/ET3 - 1600 トン
仕様 (EN) -
プレス機 Rovetta S4-16000-5000x2400/E/ET3 - 1600 トン (ID: S84553)
| Type | Stamping press |
| Manufacturer | Rovetta |
| Model | S4-16000-5000x2400/E/ET3 |
| Pressure total | 1600 ton |
| Ram stroke | 750 mm |
| Ram adjustment | 400 mm |
| Shut height (stroke down, adjustment up) | 1200 mm |
| Free frontal opening L-R | 5200 mm |
| Table surface area | 5000 x 2400 mm |
| Ram surface area | 5000 x 2400 mm |
| Number of strokes | 8 — 24 s.p.m. |

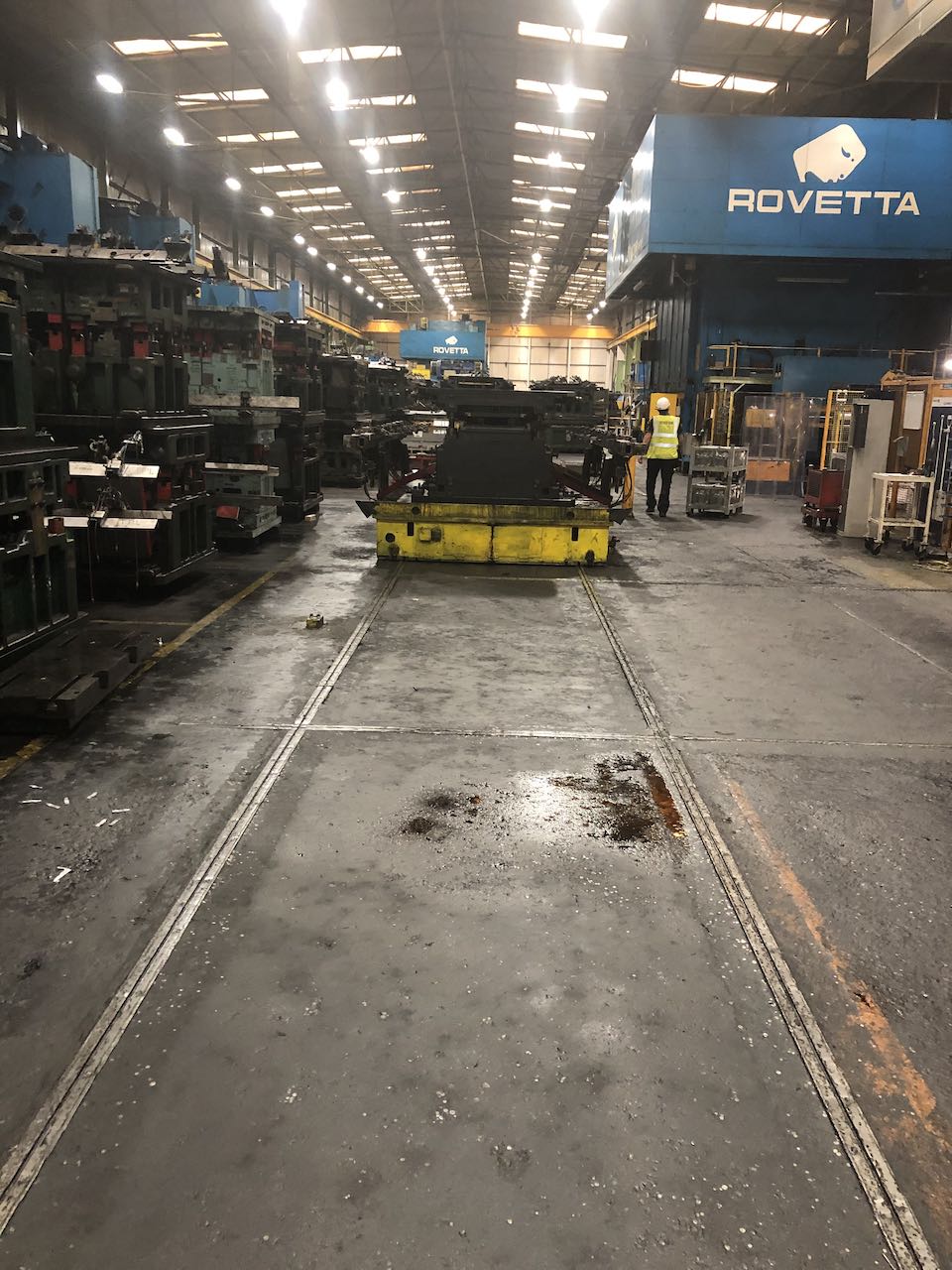

| No. of moving bolster | 2 pcs. |
| Table height over floor | 600 mm |
| Required power | 235 kW |
| Free lateral opening F-B | 3300 x 1800 mm |
| Height over floor approx. | 8400 mm |
| Weight of machine approx. | 490 ton |
| Construction year | 1997 |
