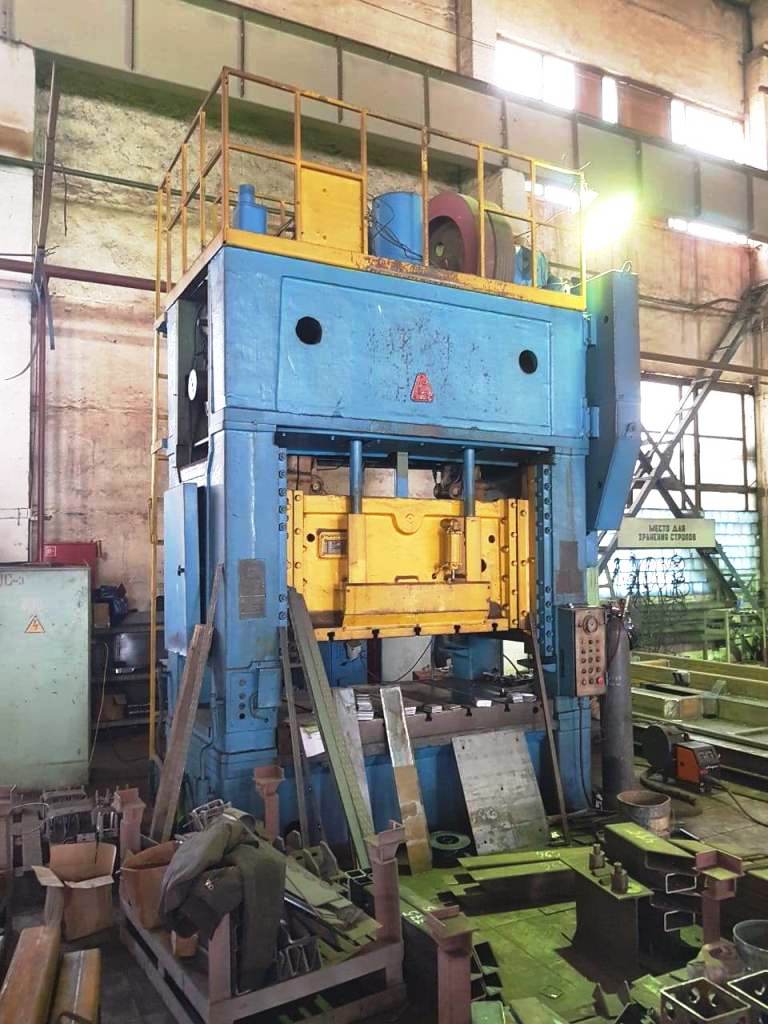

プレス機 TMP Voronezh KA3732 - 160 トン
仕様 (EN) -
プレス機 TMP Voronezh KA3732 - 160 トン (ID: 75776)
| Type | Stamping press |
| Manufacturer | TMP Voronezh |
| Model | KA3732 |
| Maximum force | 160 ton |
| Slider stroke length | 200 mm |
| Maximum distance between table and slider | 600 mm |
| Distance adjustment between table and slider | 160 mm |
| Table overall dimensions | 2000 х 1250 mm |
| Slider overall dimensions | 1000 mm |
| The greatest charge of compressed air for one course of a slider | 0,01 m |
| Course of a pillow | 90 mm |
| Total force of pushing out of pillows | 30 ton |
| Press overall dimensions | |
| Length | 3145 mm |
| Width | 2025 mm |
| Height | 4730 mm |
| Press weight | 25000 kg |
