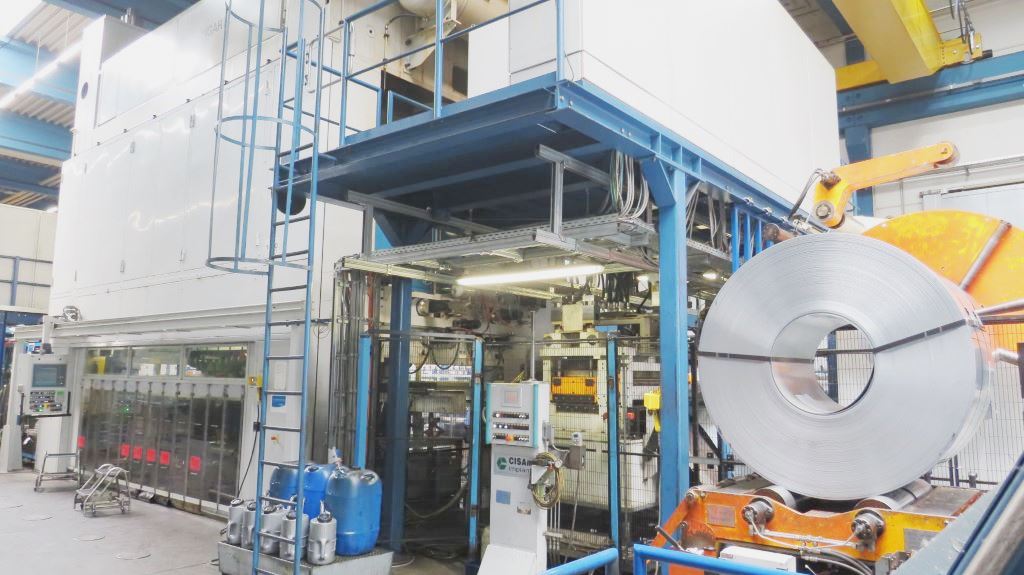

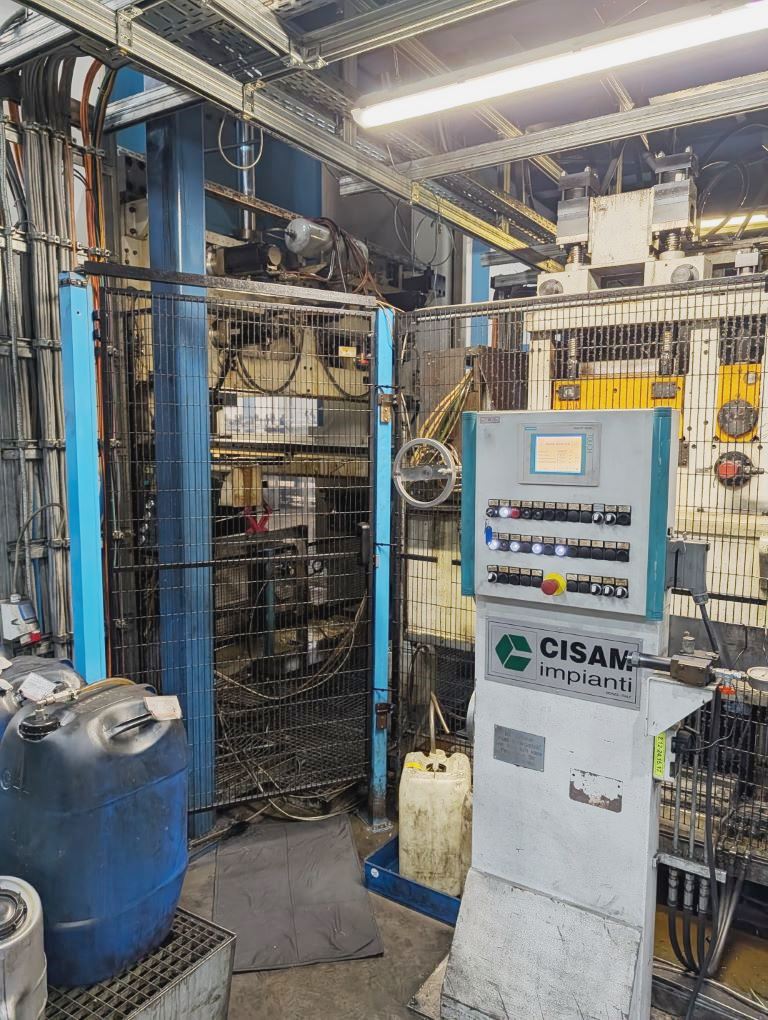

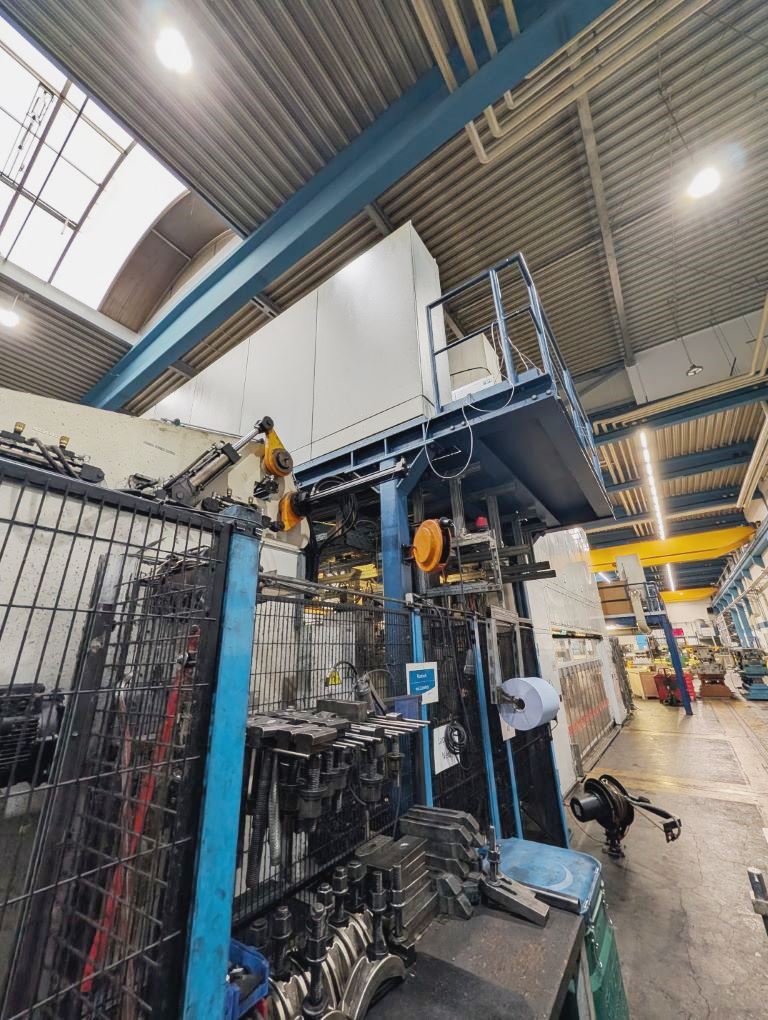

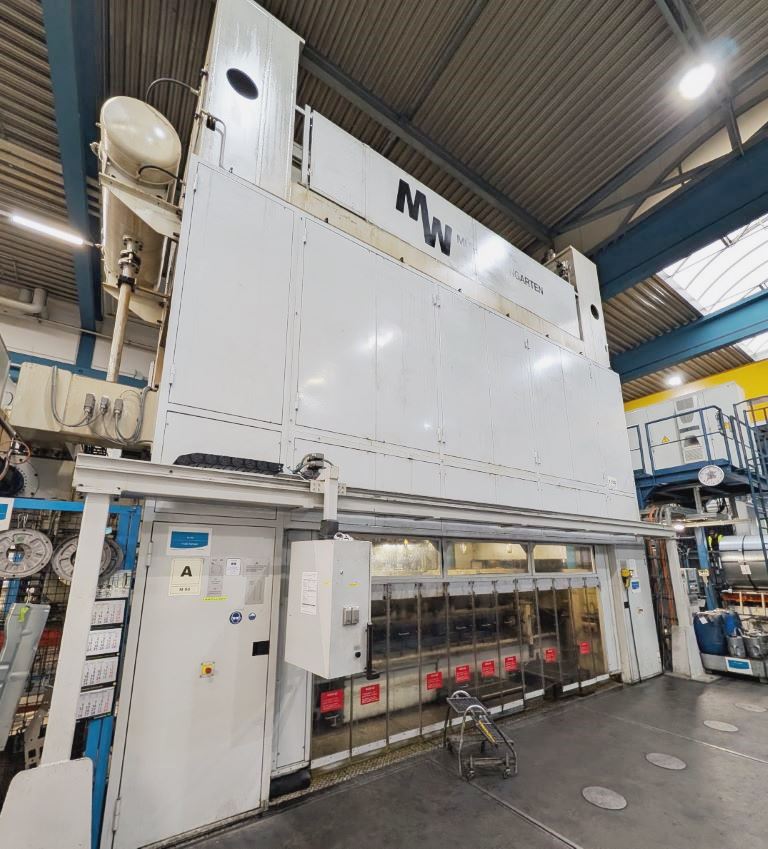

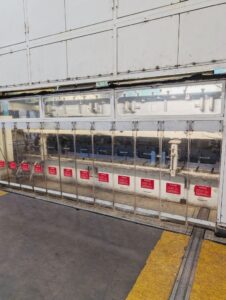

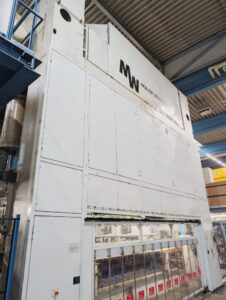

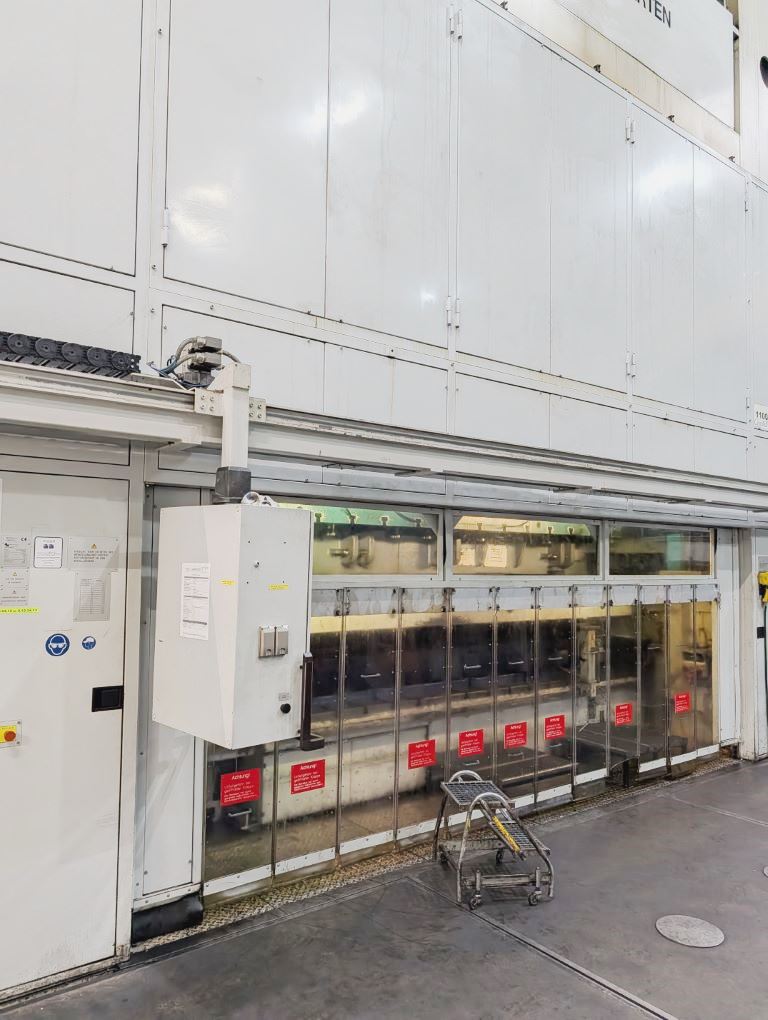

プレス機 Muller Weingarten HUQ 4.1100 - 1100 トン
仕様 (EN) -
プレス機 Muller Weingarten HUQ 4.1100 - 1100 トン (ID: 76410)
| Type | Stamping press |
| Manufacturer | Muller Weingarten |
| Model | HUQ 4.1100 |
| Force | 1100 ton |
| SPM | 8 — 30 |
| Table size | 5000 x 2440 mm |
| Ram size | 5000 x 2200 mm |
| Shut height | 1350 mm |
| Ram stroke | 750 mm |
| Adjustment | 350 mm |

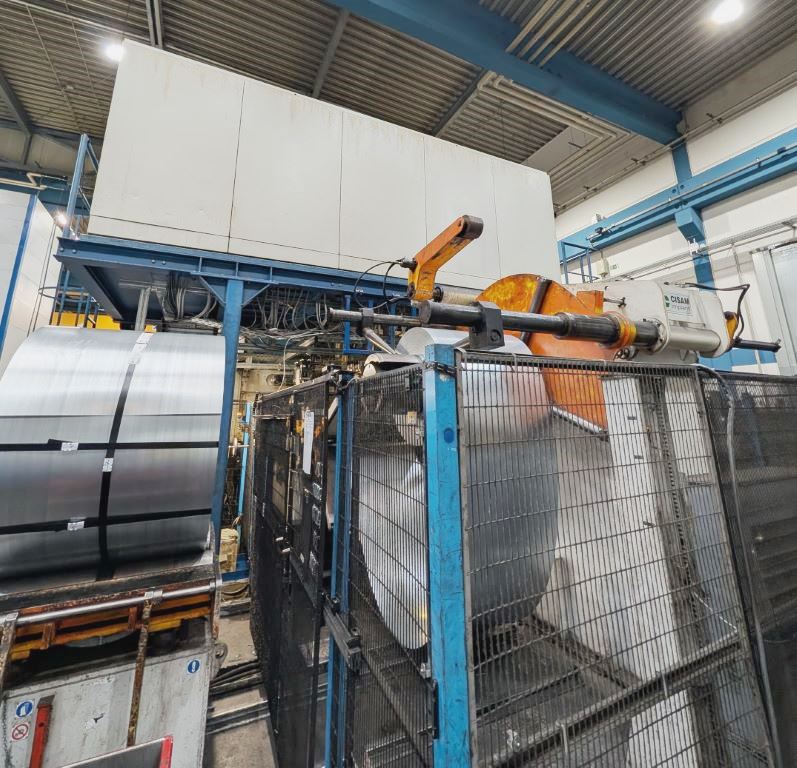

| Maximum coil cross-section | 3500 mm² |
| Straightening unit | |
| Min. sheet thickness | 1 mm |
| Maximum sheet thickness | 6 mm |

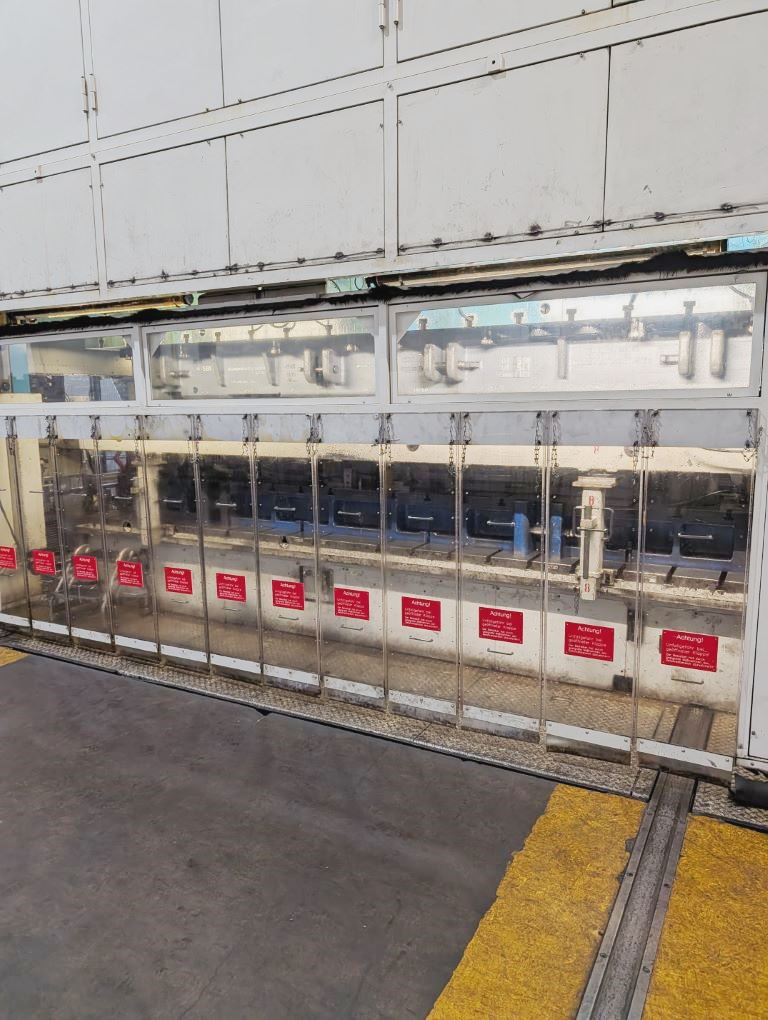

| Transfer | Electronic, 3 axes |
