水平鍛造機 Smeral LHK 800 - 800 トン
仕様 (EN) -

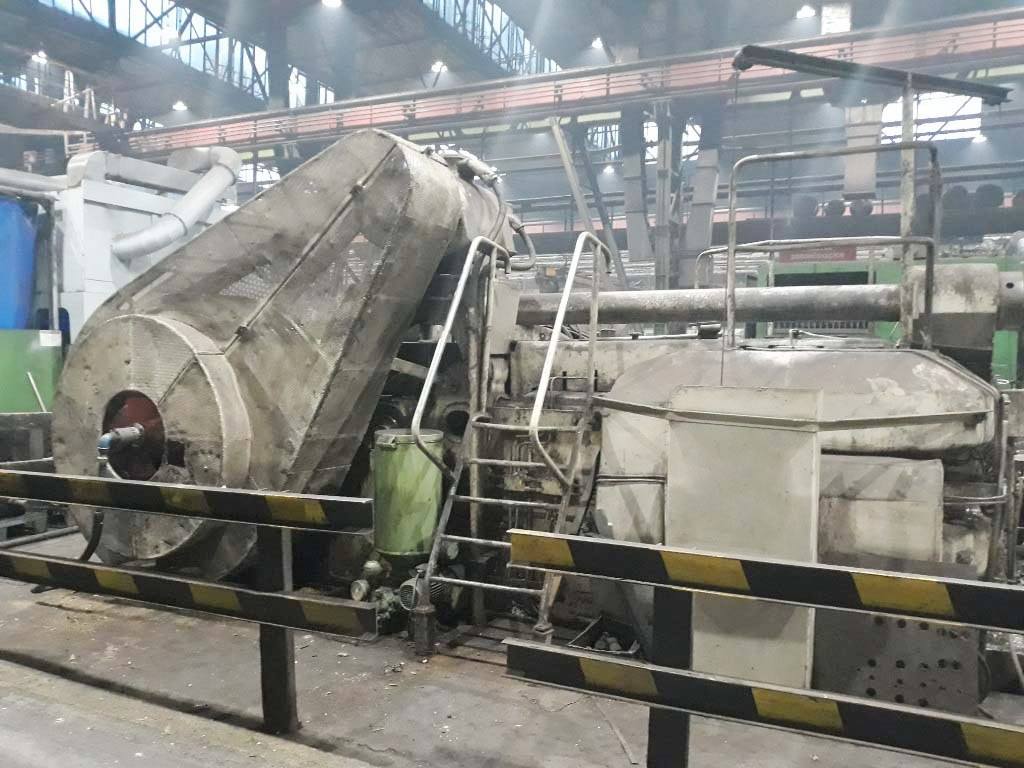

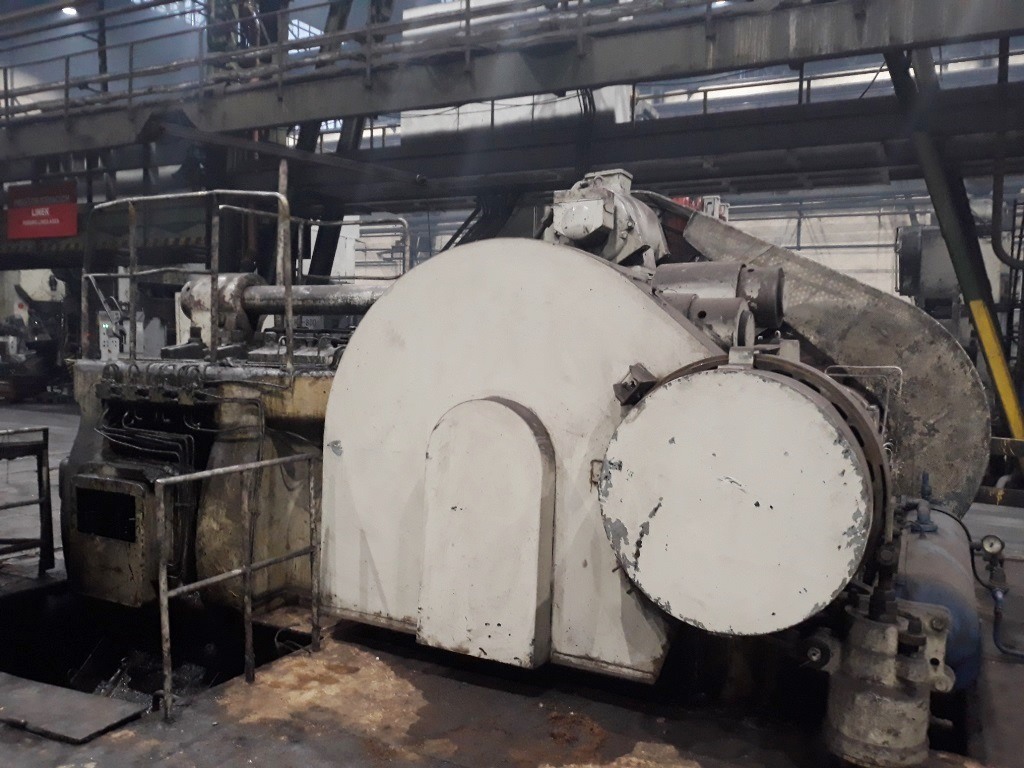

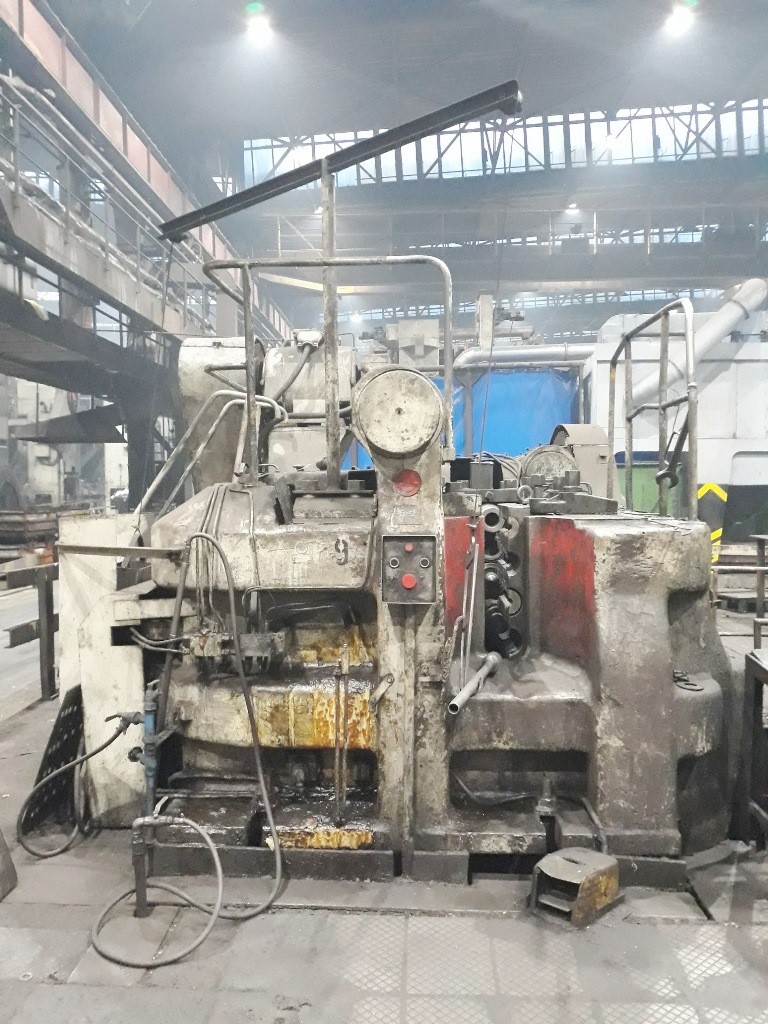

水平鍛造機 Smeral LHK 800 - 800 トン (ID: 75682)
| Type | Forging upsetter |
| Manufacturer | Smeral |
| Model | LHK 800 |
| Pressure | 800 tons |
| Ram stroke | 380 mm |
| Strokes / min. | 35 |
| Forged bar diameter | 100 mm |
| Machine weight | 81 tons |
| Length | 5500 mm |
| Width | 5600 mm |
| Height | 3060 mm |
| Operating voltage electric motor | 380 V |
| Motor power | 40 kW |
| Working stroke of main slide | 250 mm |
| Return slide of main slide at | 125 mm clamped matrix |
| Stroke of clamped slide | 150 mm |
