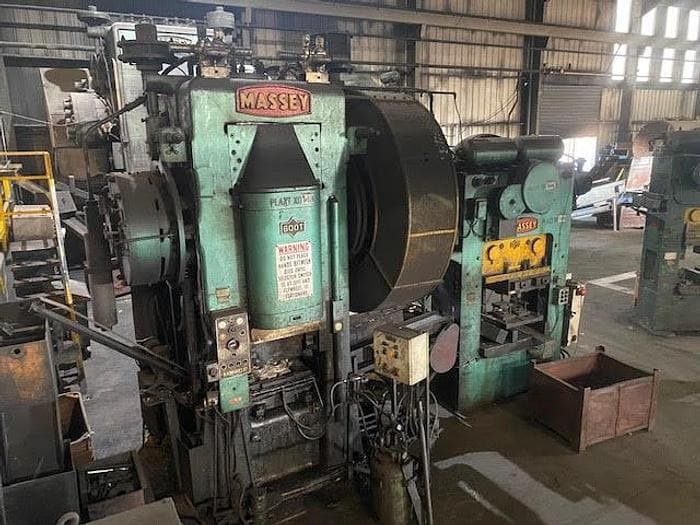

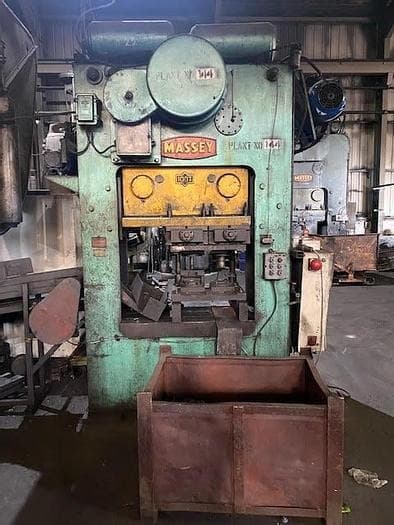

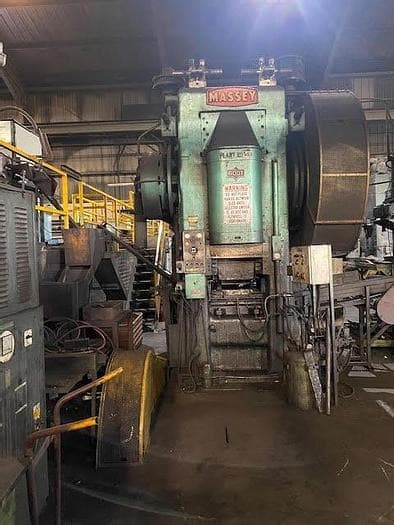

熱間鍛造プレス Massey 600 - 600 トン
仕様 (EN) - 熱間鍛造プレス Massey 600 - 600 トン (ID: S91125)
| Type | Hot forging press |
| Manufacturer | Massey |
| Model | 600 |
| Capacity | 600 ton |
| SPM | 100 mm |
| Stroke | 200 mm |
| Journal dia | 300 mm |
| Shaft dia at eccentric | 500 mm |
| Ram | 610 x 660 mm |
| Between columns | 725 mm |
| Ram to wedge (bottom of stroke) | 510 mm |
| Ram to wedge (top of stroke) | 710 mm |
| Wedge to floor | 760 mm |
| Wedge — front to back | 480 mm |
| Width of opening in columns | 460 mm |
| Floor space | 3000 x 3125 mm |
| Height above floor | 4150 mm |
| Motor size | 30 kW |
| Motor speed at full load | 560 rpm |
| Weight (gross) including girders and preload | 36 ton |
