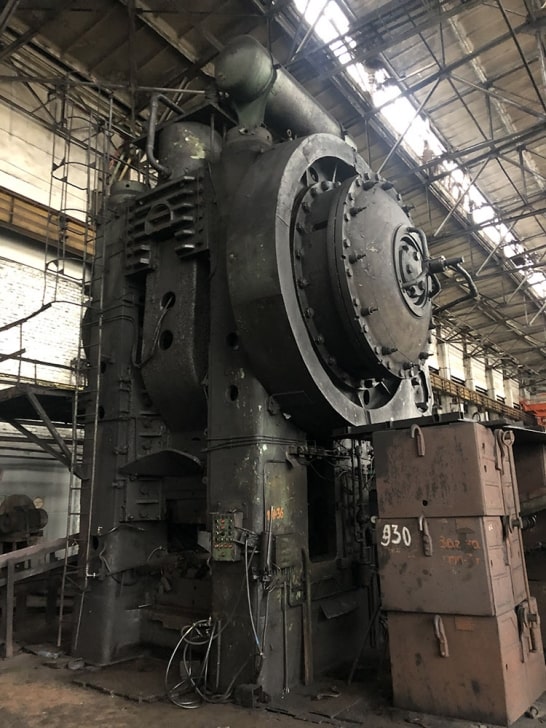

熱間鍛造プレス Smeral LKM 4000 - 4000 トン
仕様 (EN) -
熱間鍛造プレス Smeral LKM 4000 - 4000 トン (ID: 75458)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LKM 4000 |
| Capacity | 4000 ton |
| Ram stroke | 400 mm |
| Number of ram strokes | 50/1 min |
| Width between uprights | 1500 mm |
| Shut height | 1400 mm |
| Ram adjustment | 20 mm |
| Table size | 1120×1600 mm |
| Slide size | 1320×1320 mm |
| Press height above floor | 7315 mm |
| Press dimension | |
| Height | 8870 mm |
| Width | 6280 mm |
| Length | 4885 mm |
| Main drive motor output | 220 kW |
| Press weight | 285 ton |
