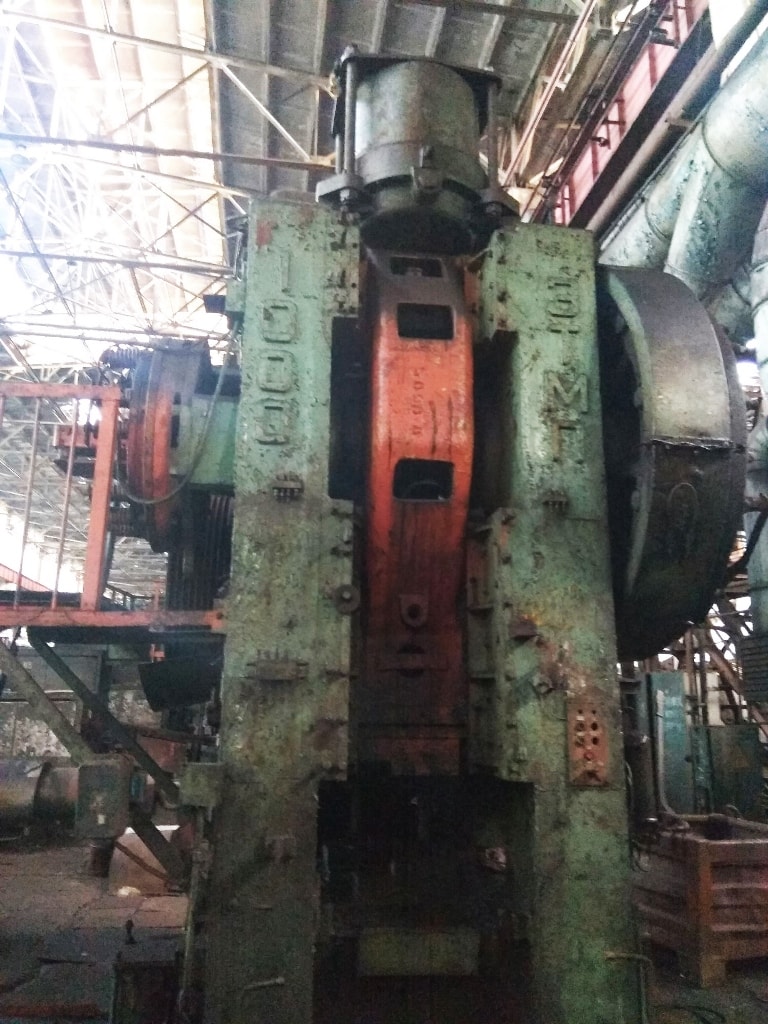

熱間鍛造プレス TMP Voronezh K8540 - 1000 トン
仕様 (EN) -
熱間鍛造プレス TMP Voronezh K8540 - 1000 トン (ID: 75482)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8540 |
| Capacity | 1000 ton |
| Table dimensions | 990 x 770 mm |
| Ram dimensions | 720 x 720 mm |
| Opening in the column | 1250 x 560 mm |
| Ram stroke | 250 mm |
| Max. distance between table and slider | 560 mm |
| Table-to-ram adjustment | 20 mm |
| Upper knockout stroke | 40 mm |
| Lower knockout stroke | 20 mm |
| Lower knockout capacity | 5 ton |
| Number of strokes per minute | 90 |
| Main motor power | 55 kW |
| Voltage | 380 V |
| Machine dimensions | 4350 x 3500 x 5145 mm |
| Press weight | 61500 kg |
