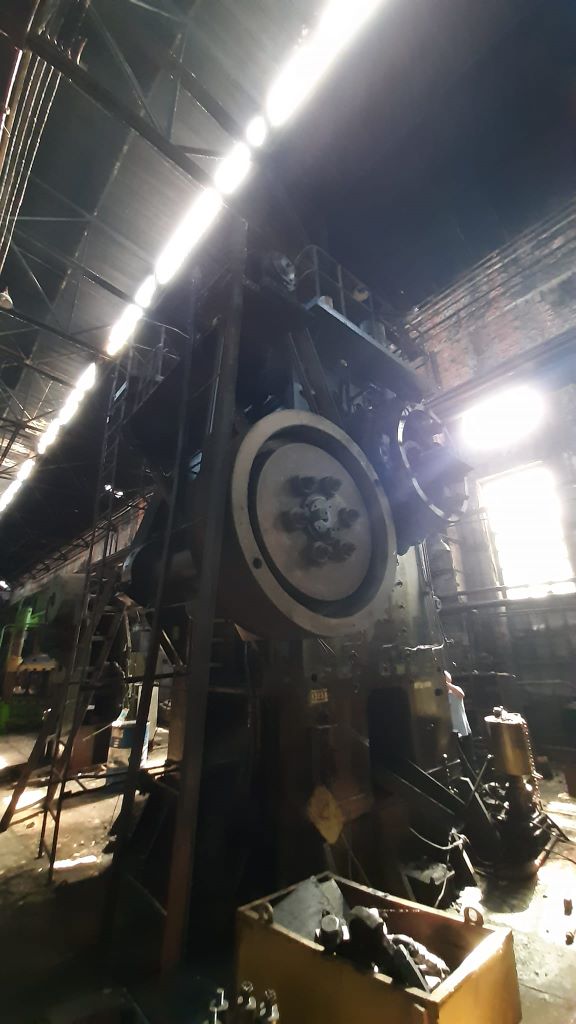

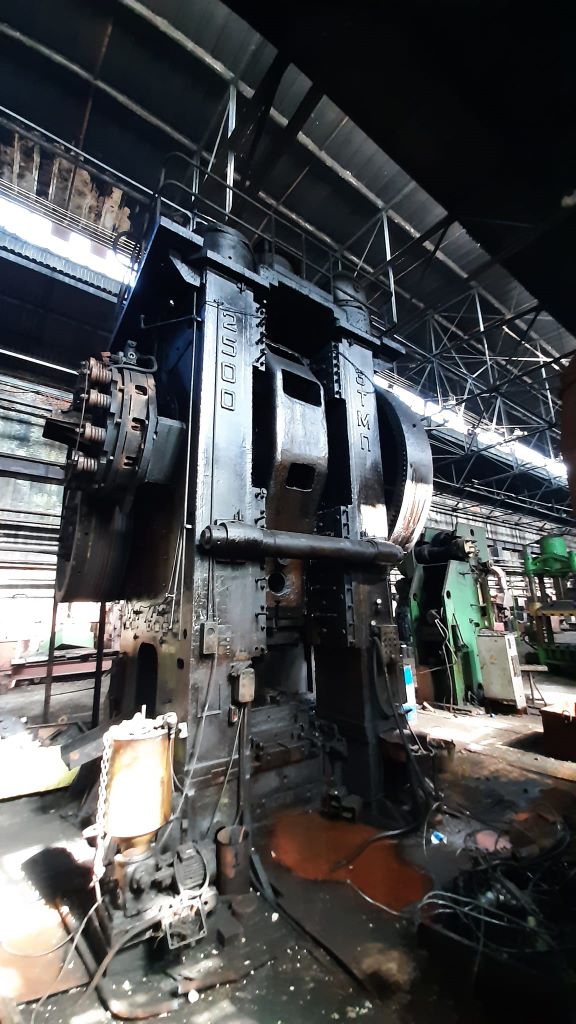

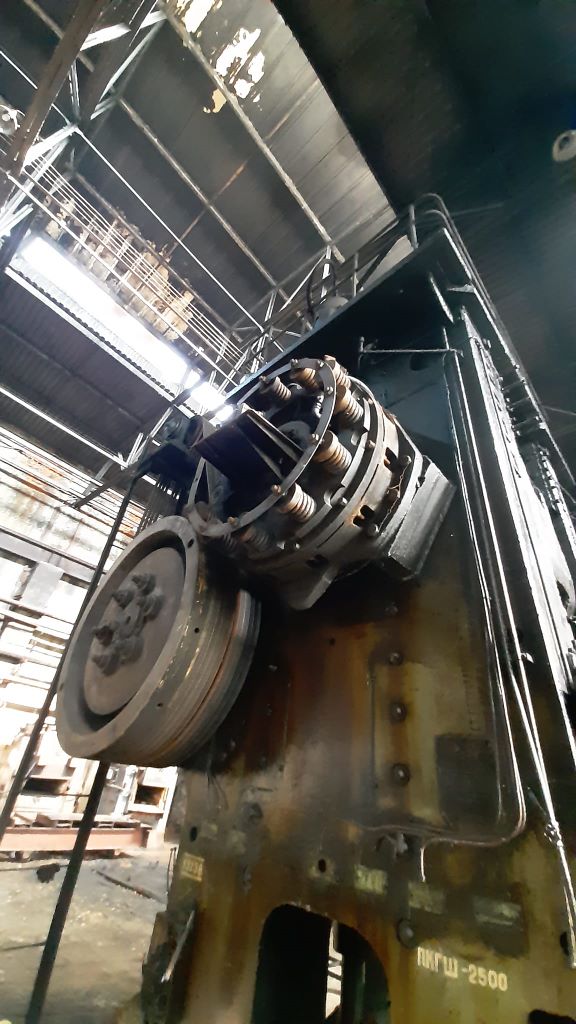

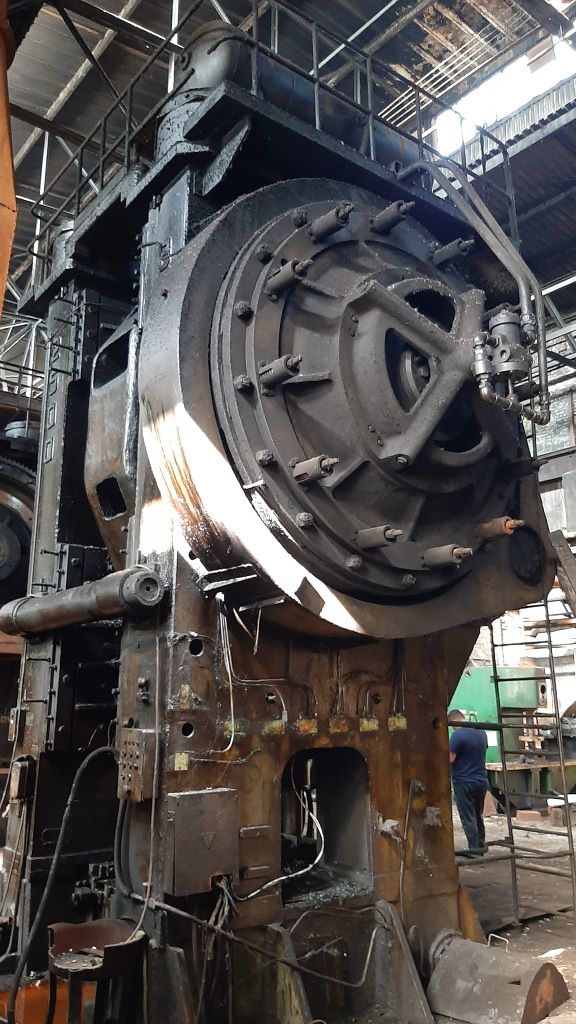

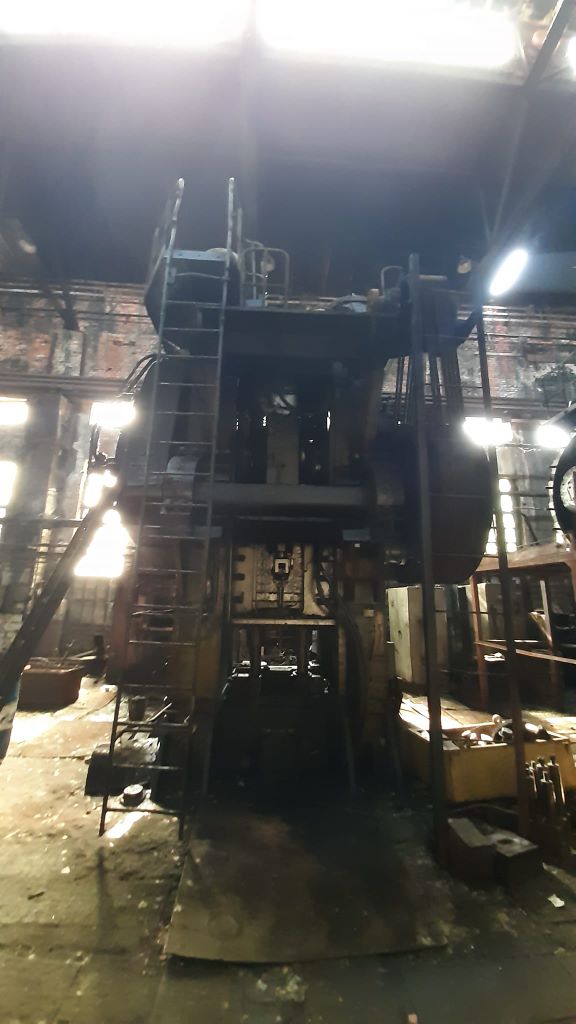

熱間鍛造プレス TMP Voronezh K8544 - 2500 トン
仕様 (EN) -
熱間鍛造プレス TMP Voronezh K8544 - 2500 トン (ID: S89825)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8544 |
| Capacity | 2500 ton |
| Table dimensions | 1200 x 1400 mm |
| Ram dimensions | 1070 x 1120 mm |
| Ram stroke | 350 mm |
| Shut height | 890 mm |
| Table-to-ram adjustment | 10 mm |
| Distance between columns | 1320 mm |
| Table height above floor | 450 mm |
| Upper knockout stroke | 6,3 x 50 / ton x mm |
| Lower knockout stroke | 10 x 50 / ton x mm |
| Number of strokes per minute | 60 |
| Working strokes per minute | 20 |
| Working air pressure | 5 kg/cm |
| Main motor power | 132 kW |
| Voltage | 380 V |
| Overall press dimensions | 5350 x 4680 x 8250 mm |
| Press weight, app. | 203000 kg |
