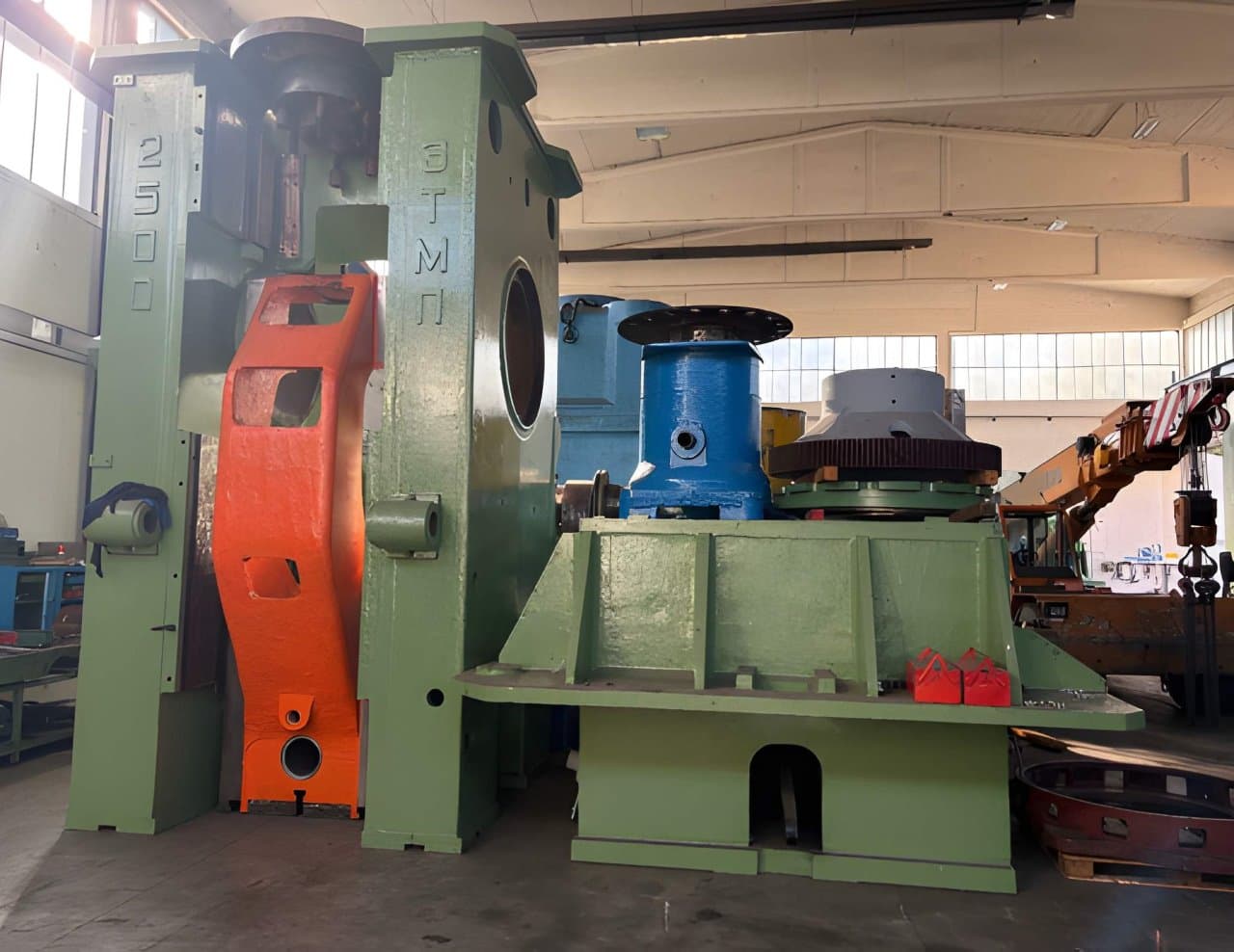

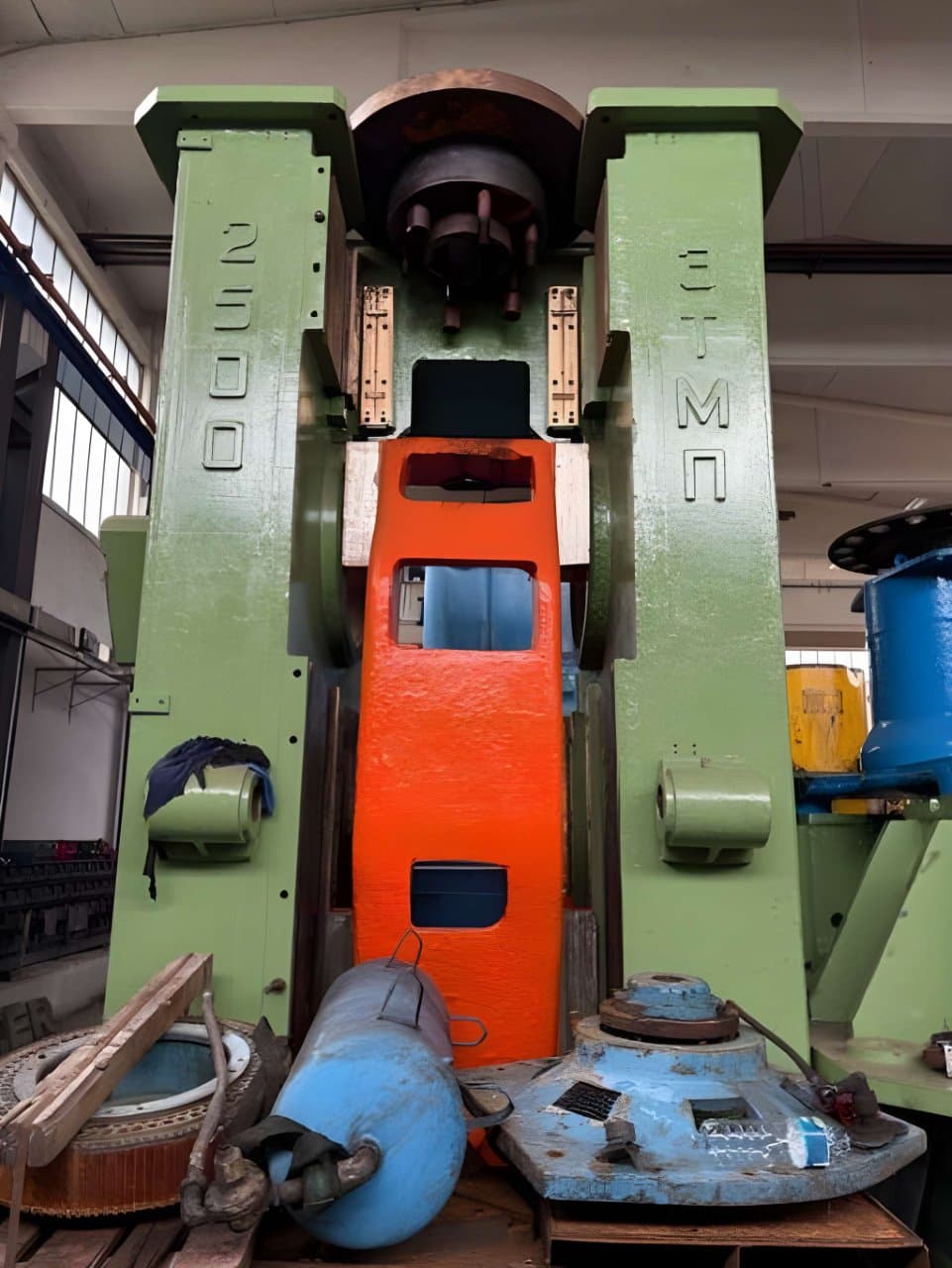

熱間鍛造プレス TMP Voronezh K8544 - 2500 トン
仕様 (EN) -
熱間鍛造プレス TMP Voronezh K8544 - 2500 トン (ID: 76406)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8544 |
| Force | 2500 ton |
| Slider stroke | 350 mm |
| SPM | 60 |
| Shut height | 890 mm |
| Length of a rod | 1100 mm |
| Table overall dimensions | 1400 x 1200 mm |
| Slider overall dimensions | 1120 x 1070 mm |
| The size of lateral windows (H x W) | 890 x 720 mm |
| Distance between | 1320 mm |
| Top ejector mechanism | |
| — Stroke | 50 mm |
| — Capacity | 63 kN |
| Bottom ejector mechanism | |
| — Stroke | 50 mm |
| -Capacity | 100 kN |
| Press overall dimensions (L x W x H) approx. | 5380 x 4680 x 6400 mm |
| Press weight approx. | 198 ton |
