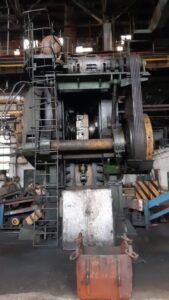

熱間鍛造プレス TMP Voronezh K8544 - 2500 トン
仕様 (EN) -
熱間鍛造プレス TMP Voronezh K8544 - 2500 トン (ID: 75708)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8544 |
| Rated capacity | 2500 tons |
| Shut height | 900 mm |
| Adjustable distance between table and slide | 10 mm |
| Dimensions of openings in L. H. press side wall | |
| Height | 900 mm |
| Width | 700 mm |
| Table working surface | |
| L-to-R | 1200 mm |
| F-to-B | 1400 mm |
| Slide dimensions | |
| L-to-R | 1070 mm |
| F-to-B | 1120 mm |
| Slide stroke | 350 mm |
| Slide strokes per minute (continuous) | 60 |
| Number of pitmans | 2 |
| Number of drive stages | 2 |
| Top ejector mechanism | |
| Stroke | 50 mm |
| Capacity | 63 kN |
| Bottom ejector mechanism | |
| Stroke | 50 mm |
| Capacity | 100 kN |
| Main drive motor power | 90 kW |
| Overall dimensions | |
| L-to-R | 5585 mm |
| F-to-B | 3750 mm |
| Height above floor level | 6800 mm |
| Mass (app.) | 190 tons |
