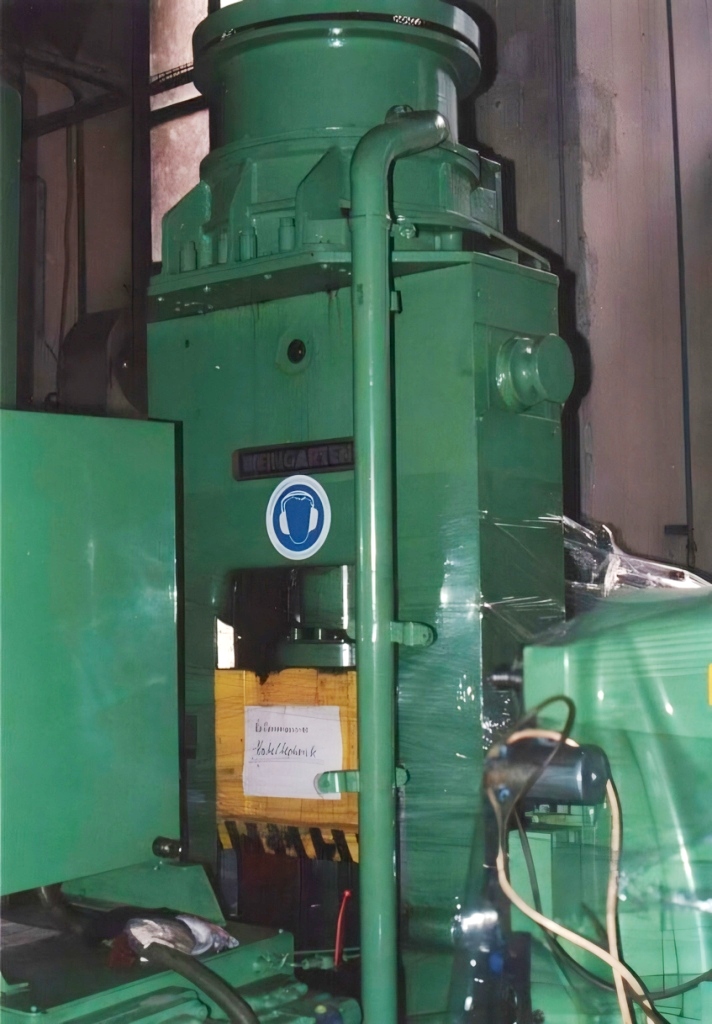

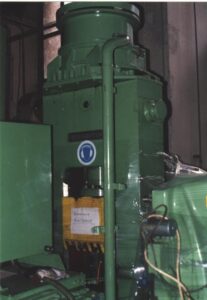

ねじプレス Weingarten PS 125 - 110 トン
仕様 (EN) -
ねじプレス Weingarten PS 125 - 110 トン (ID: 75777)

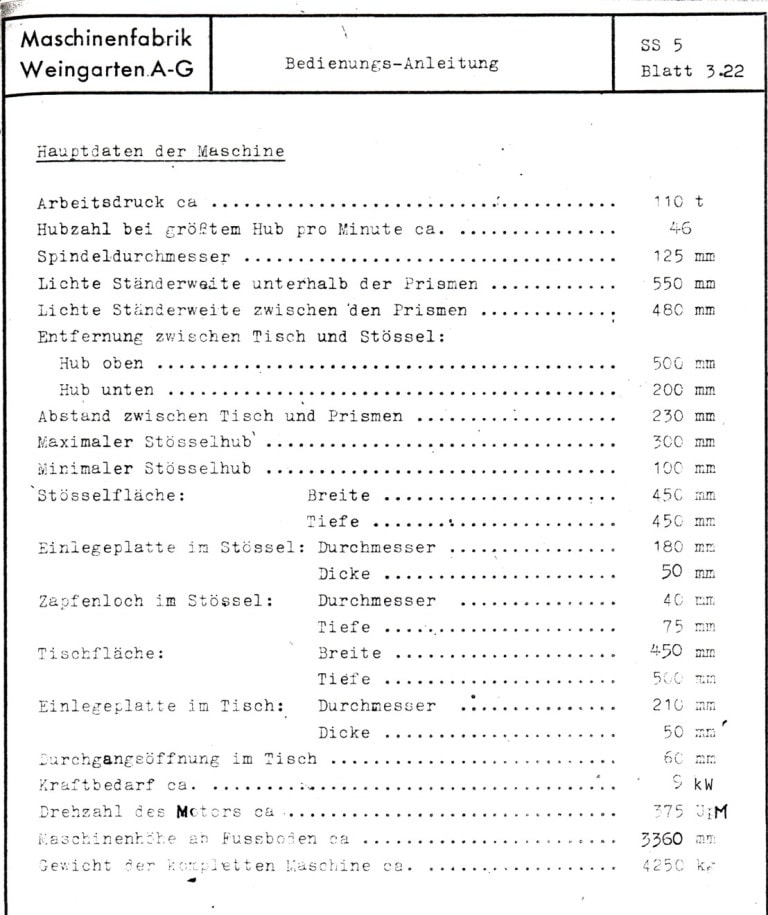

| Type | Screw press |
| Manufacturer | Weingarten |
| Model | PS 125 |
| Pressure | 110 ton |
| Stroke | 100 — 300 mm |
| No. of strokes | 46 Hub/min |
| Distance between columns | 550 mm |
| Distance table/ram, max. stroke up, adjustment up | 500 mm |

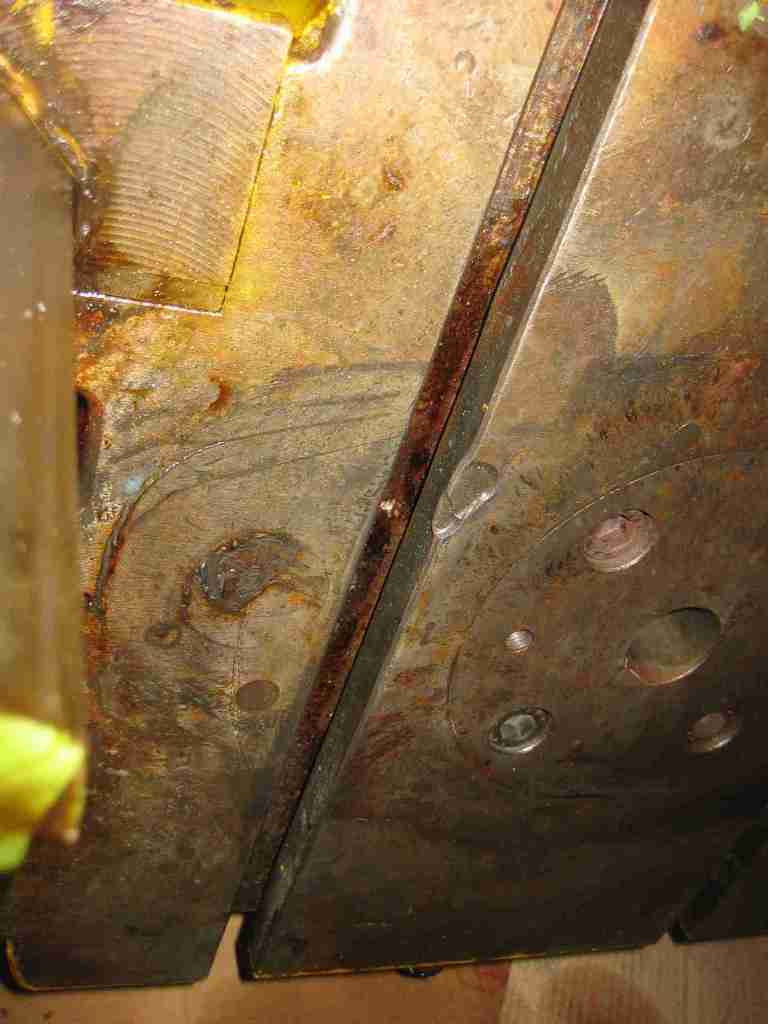

| Table surface area | 500 x 500 mm |

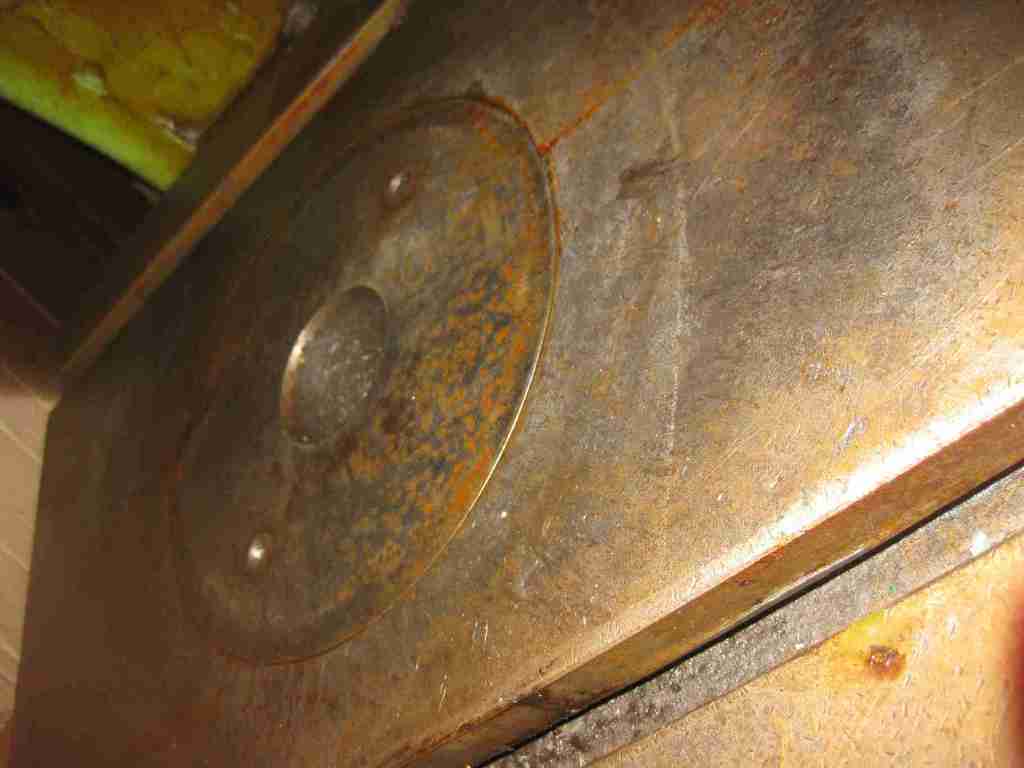

| Hole in the table | 60 mm |
| Ram surface | 450 x 450 mm |
| Ram drills x depth | 40 x 75 mm |
| Spindle diameter | 125 mm |
| Max. ram stroke | 300 mm |
| Min. ram stroke | 100 mm |
| Weight of the machine | 3,4 ton |
| Dimensions of the machine | 1,5 x 0,95 x 3,1 m |

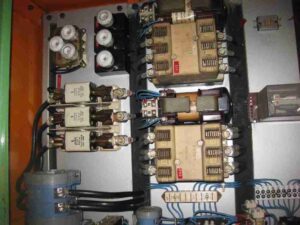

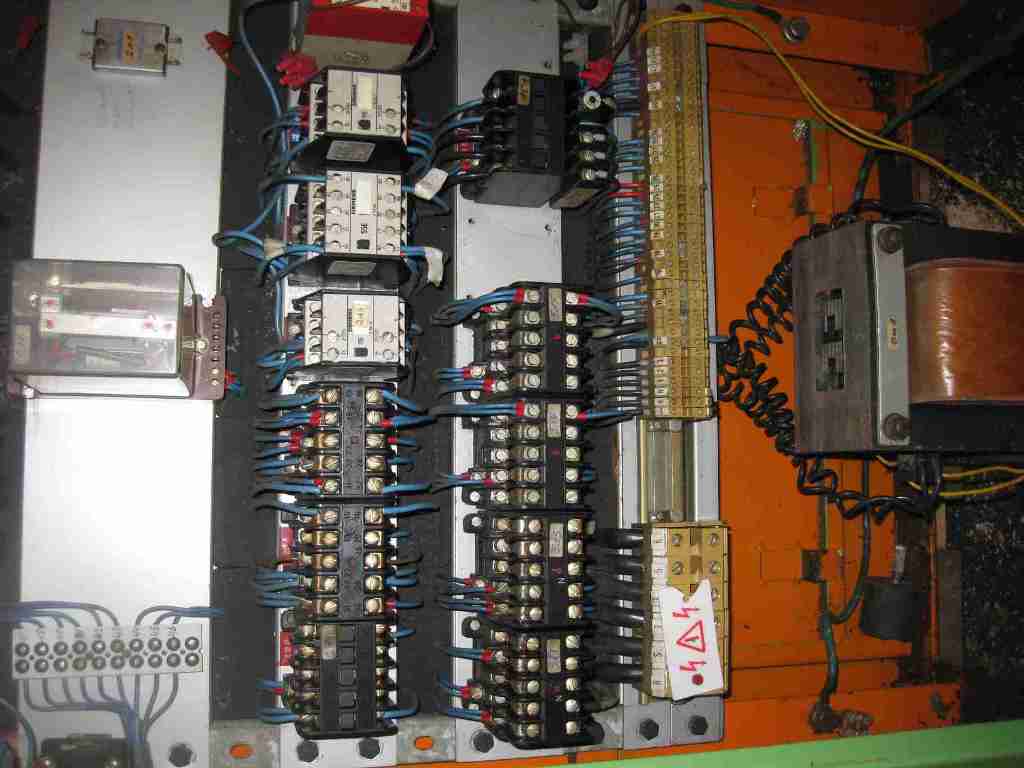

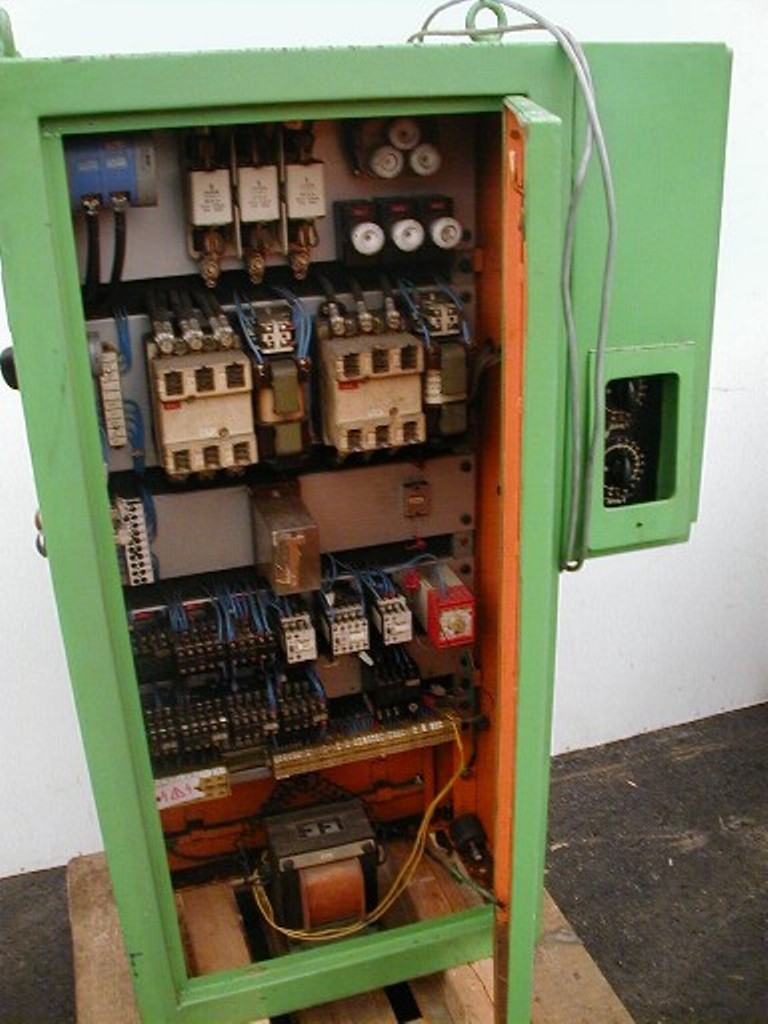

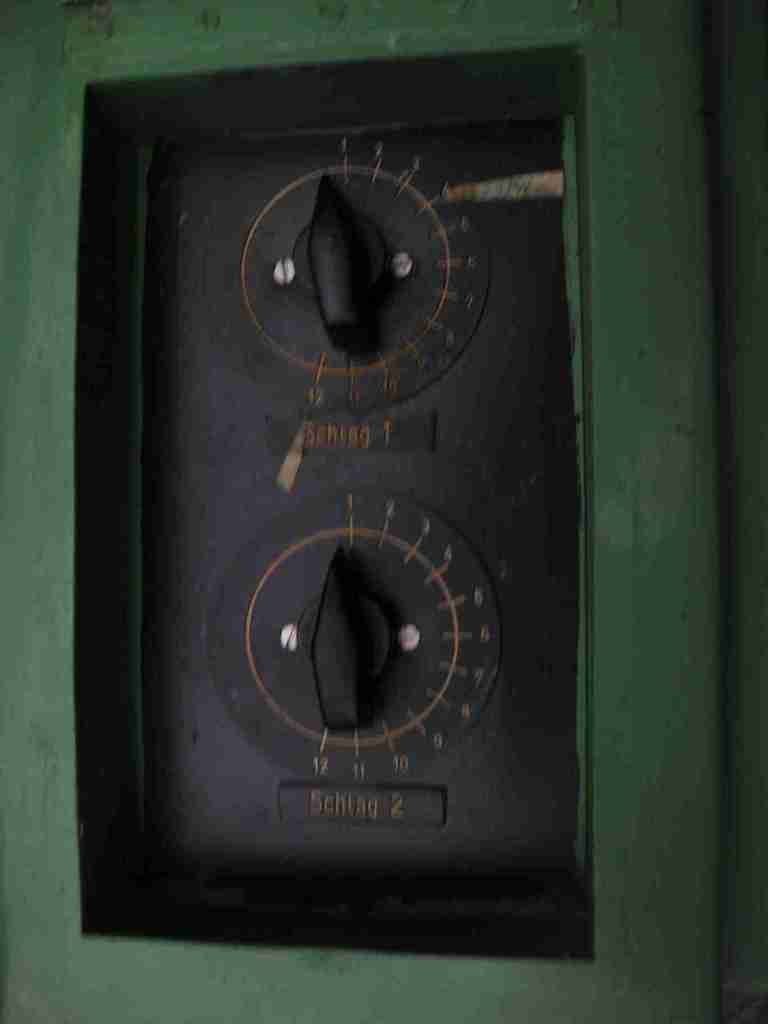

| Control unit | conventional |
