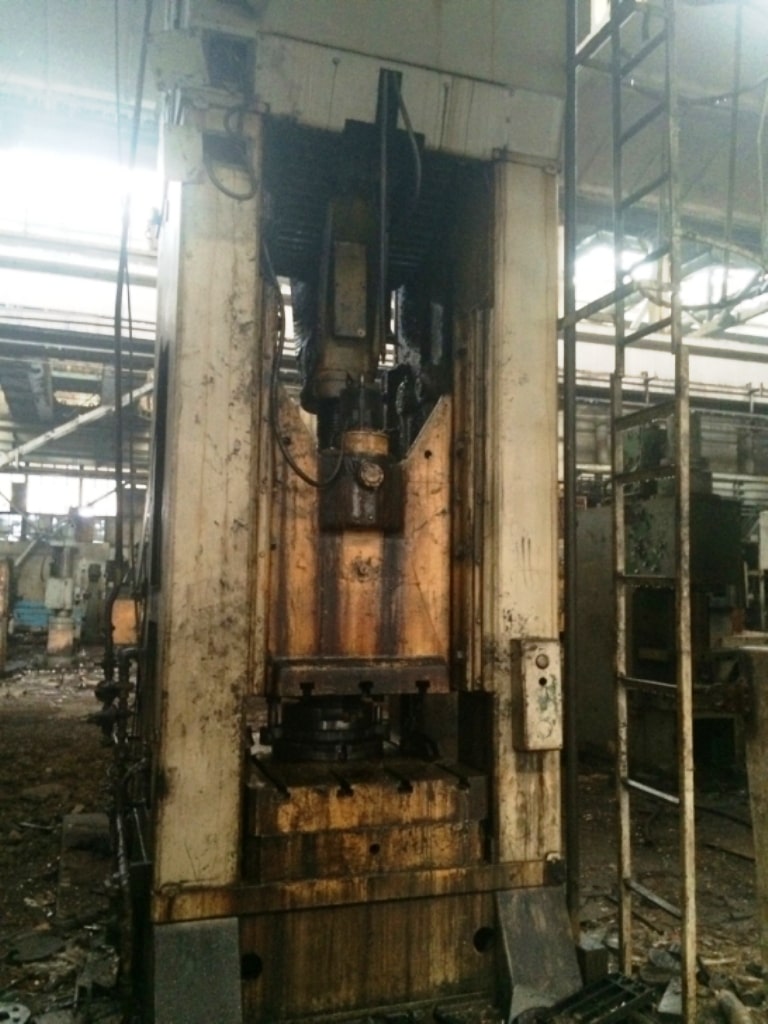

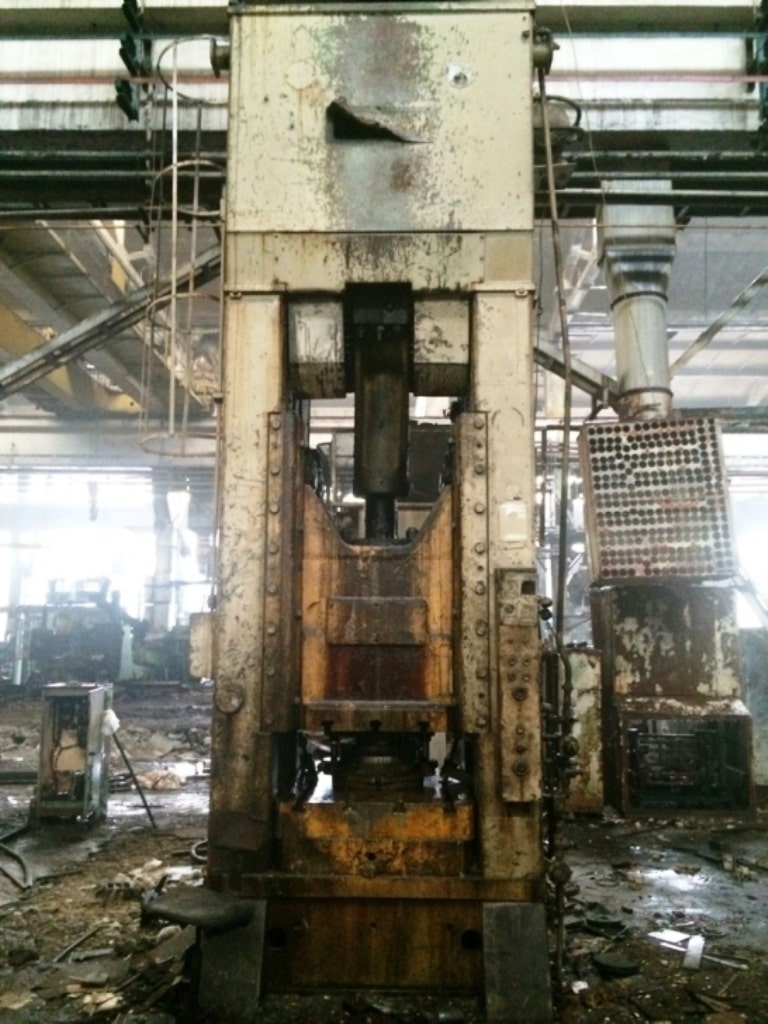

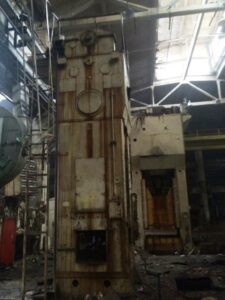

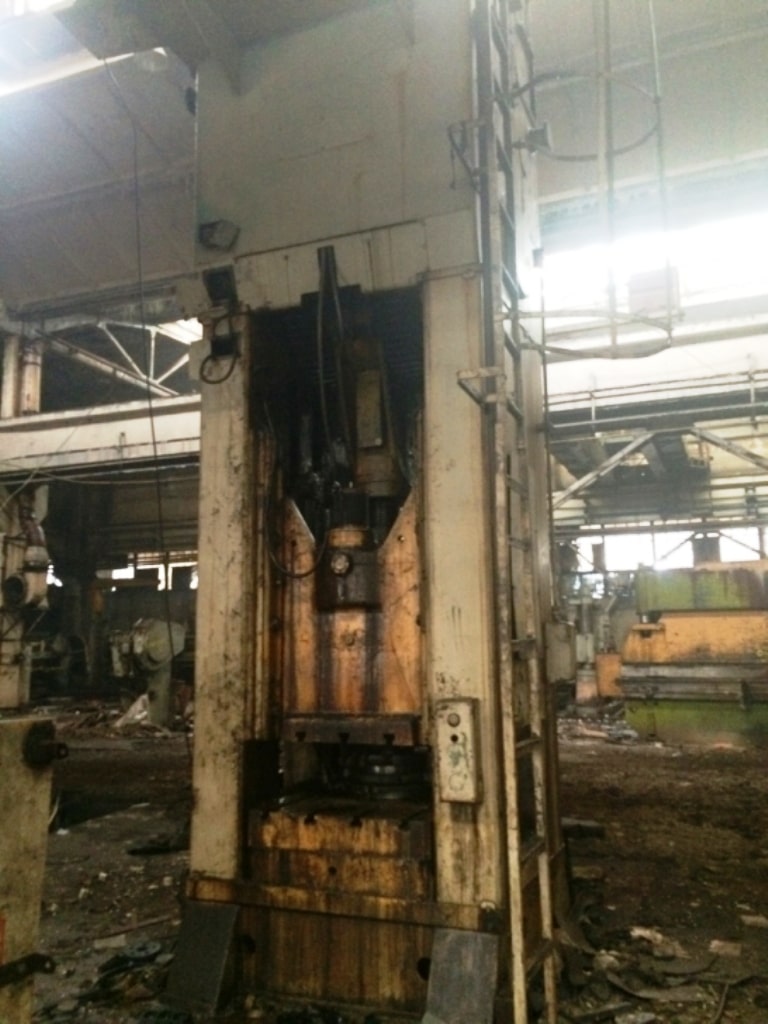

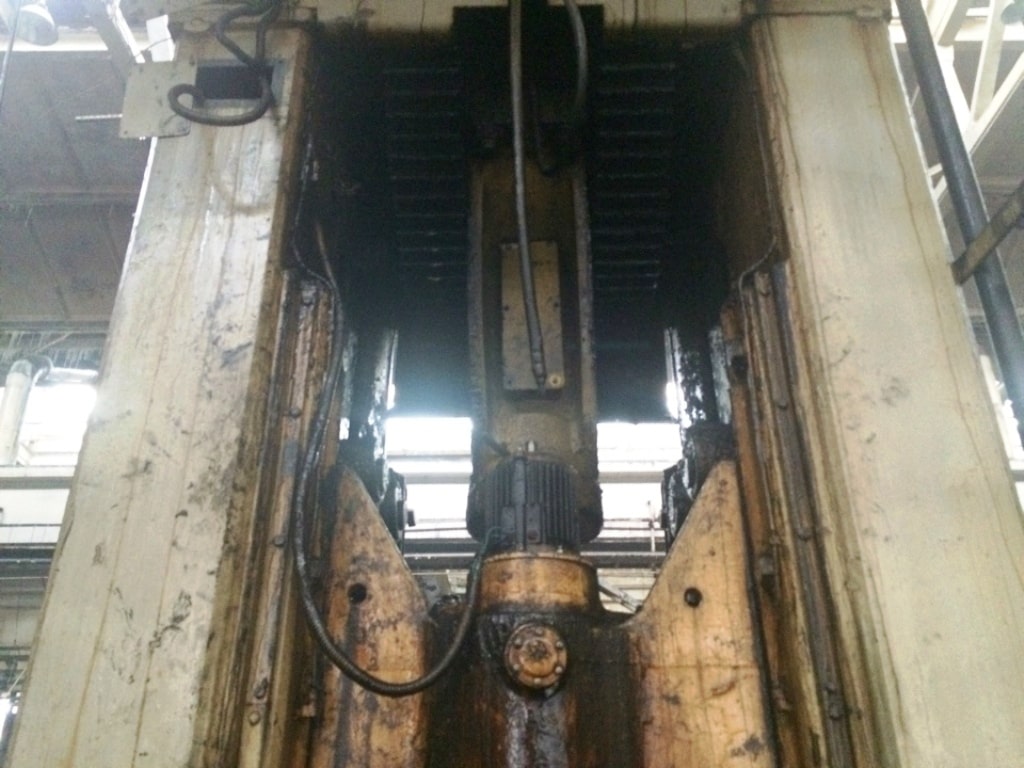

トリミングプレス Erfurt PKZe 500 - 500 トン
仕様 (EN) -
トリミングプレス Erfurt PKZe 500 - 500 トン (ID: S84337)
| Type | Trimming press |
| Manufacturer | Erfurt |
| Model | PKZe 500 |
| Y.O.M | 1983 |
| Max. slide effort at the distance of 27 mm to the lower dead point | 500 ton |
| Slide effort at the distance of 160 mm to the lower dead point | 250 kN |
| Number of single strokes per minute | 12 |
| Slide stroke | 400 mm |
| Slide adjustment | 220 mm |
| Ejector stroke | 180 mm |
| Thickness of plate with slots for fastening | 175 mm |
| Inner height between plate with slots and pusher (stroke down, adjustment up) | 675 mm |
| Clearance between columns | 1000 mm |

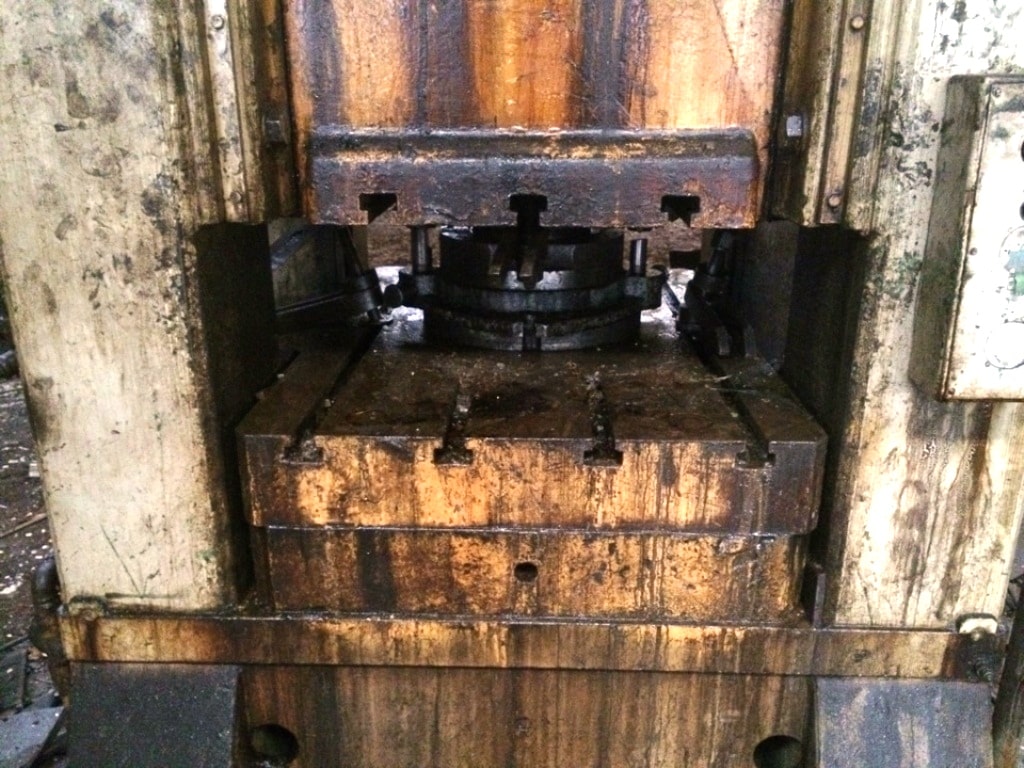

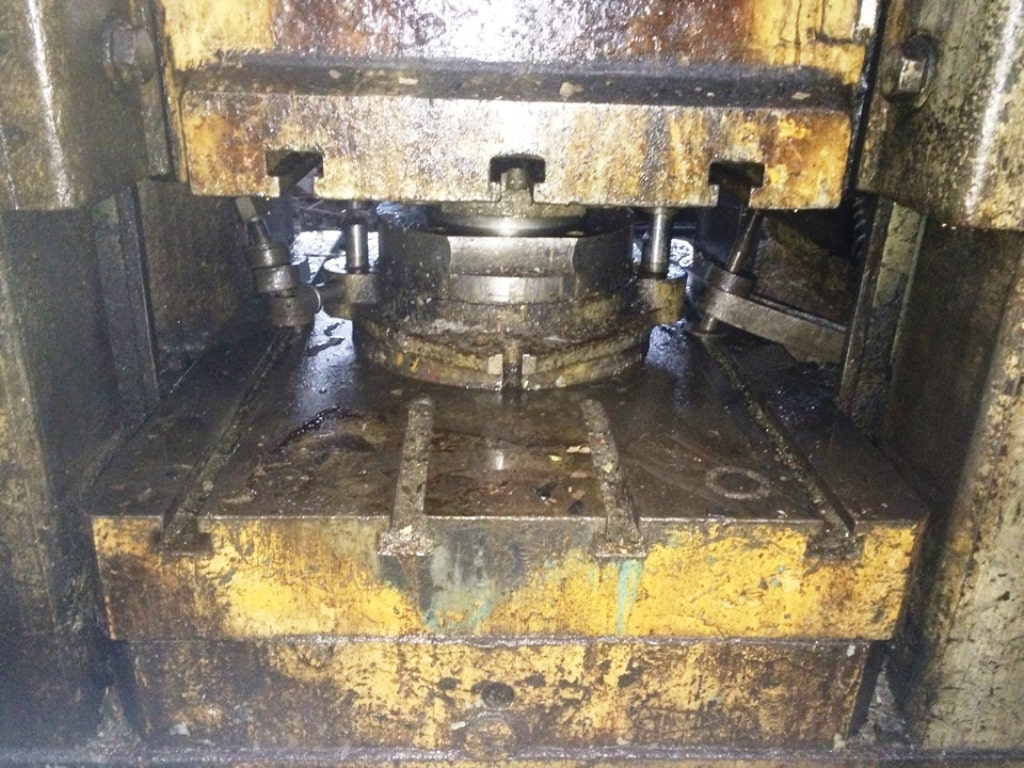

| Table area | 1000 x 1400 mm |
| Table opening | 710 x 710 mm |
| Pusher area | 800 x 1120 mm |
| Table cushion | |
| Max. stroke | 160 mm |
| Stroke adjustment | 160 mm |
| Max. retention effort | 800 kN |
| Max. ejection effort | 125 kN |
| Main motor power | 41 kW — 1320 rpm |
| Power of pusher motor | 3,5 kW — 1420 rpm |
| Number of revs of flywheel shaft | 630 rpm |
| Press weight | 43 tons |
