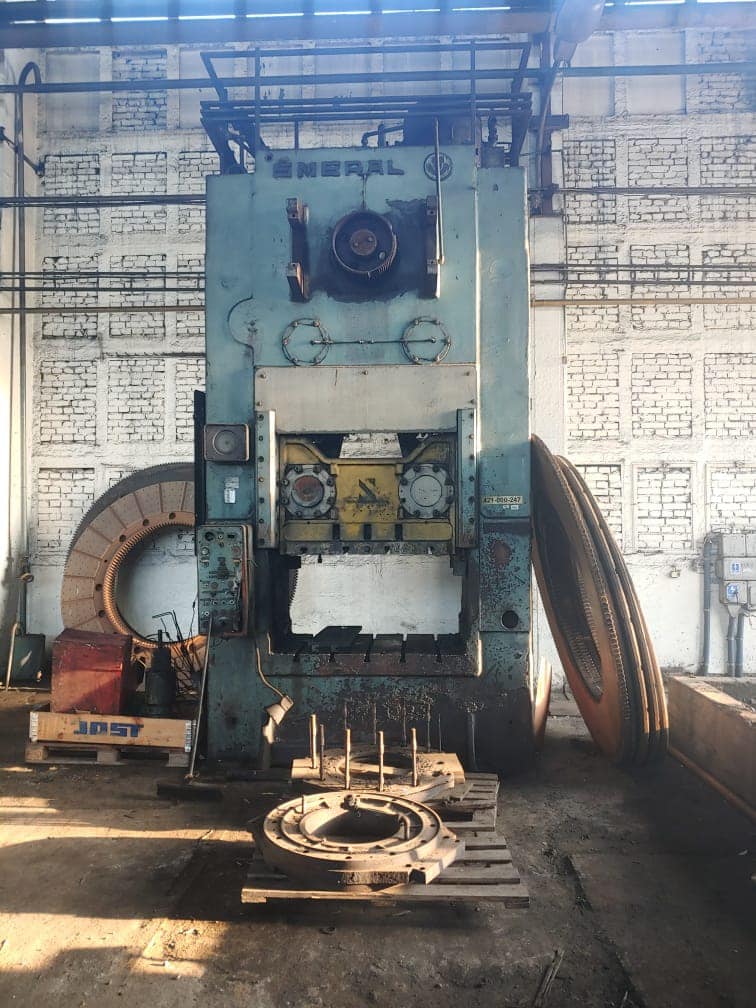

トリミングプレス Smeral LDO 315 - 315 トン
仕様 (EN) -
トリミングプレス Smeral LDO 315 - 315 トン (ID: S87000)
| Type | Trimming press |
| Manufacturer | Smeral |
| Model | LDO 315 |
| Year of manufacture | 1982 |
| Rated deformation force | 315 ton |
| Number of ram strokes (1/min) | 44 |
| Ram stroke | 200 mm |
| Ram adjustment | 20mm |
| Working area of bed | 1250 x 900 mm |
| Working area of table | 1380 x 950 mm |
| Passage | 1420 mm |
| Shutheight | 700 mm |
| Output of main motor | 30 mm |
| Lenght of the machine | 2350 mm |
| Widht of the machine | 2300 mm |
| Height of the machine | 4900 mm |
| Weight of the machine | 27500 kg |
