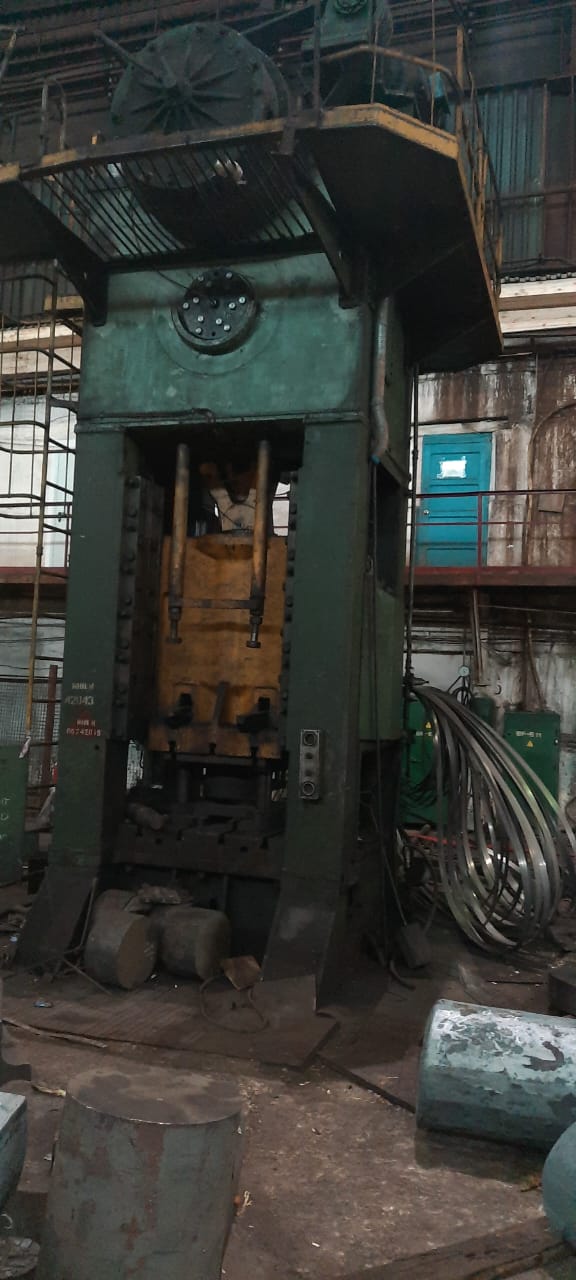

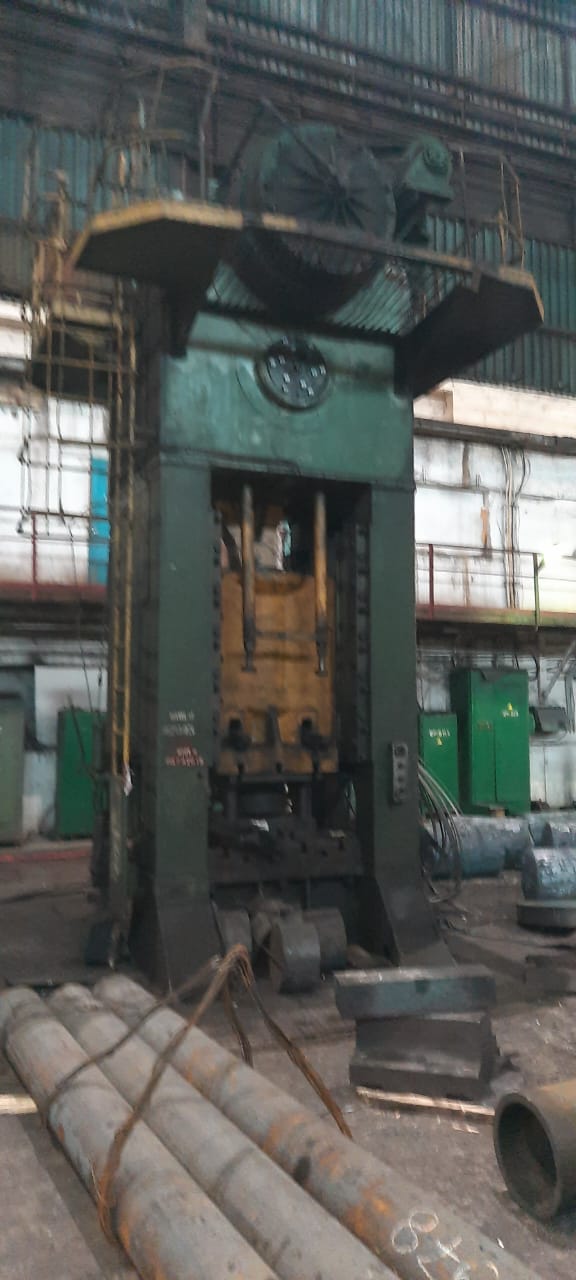

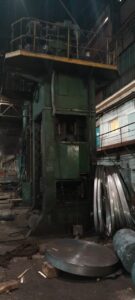

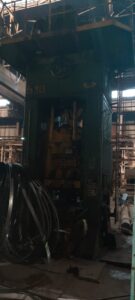

トリミングプレス TMP Voronezh K9538 - 630 トン
仕様 (EN) -
トリミングプレス TMP Voronezh K9538 - 630 トン (ID: 76096)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K9538 |
| Year of manufacture | 1981 |
| Capacity | 630 ton |
| Slider stroke | 420 mm |
| Stroke path till its position where it develops nominal capacity | 9,5 mm |
| Slider strokes, spm | 20 |
| Shut height | 750 mm |
| Distance adjustment between table and slider | 180 mm |
| Slider size | 1000 x 1000 mm |
| Table size | 1250 x 1250 mm |
| Table gap size | 800 x 800 mm |
| Window size | 750 x 400 mm |
| Bolster plate thickness | 180 mm |
| Ram load | 2000 kg |
| Motor capacity | 58 kW |
| Voltage | 340 V |
| Machine dimensions | 3280 x 3470 x 6190 mm |
| Machine weight | 49800 kg |
