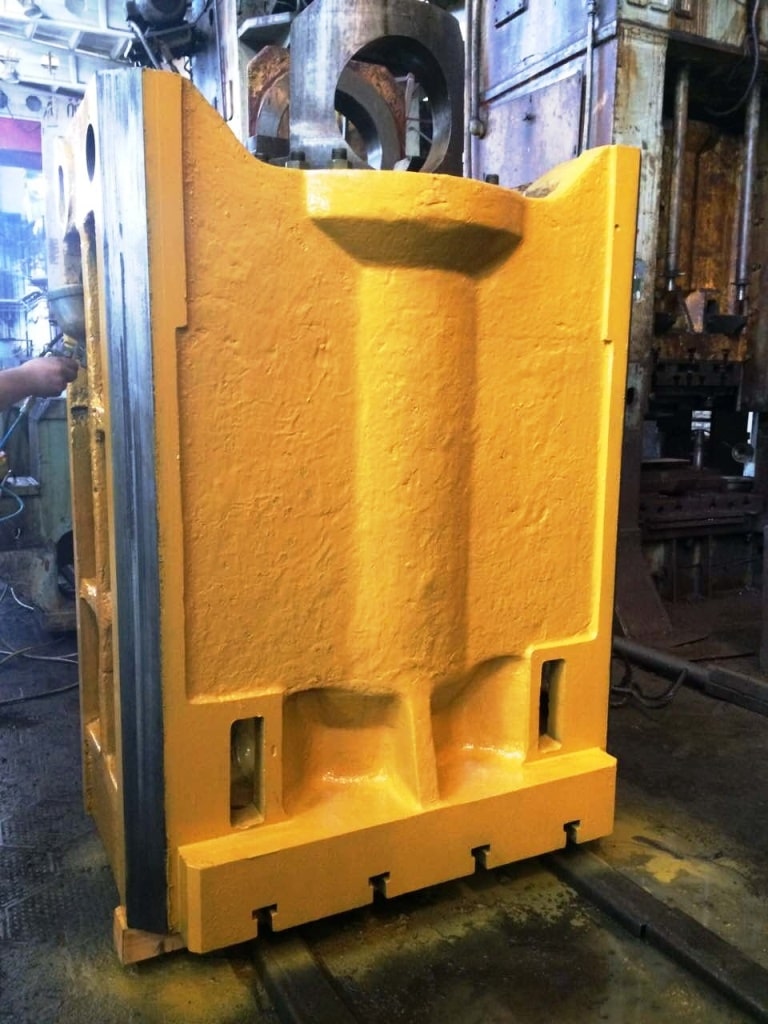

トリミングプレス TMP Voronezh K9540 - 1000 トン
仕様 (EN) -
トリミングプレス TMP Voronezh K9540 - 1000 トン (ID: S80243)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K9540 |
| Made in | Russia |
| Maximum force | 1000 ton |
| Slider stroke length | 500 mm |
| Unattainable-course | 8 mm |
| Number of courses of a slider per minute | 20 rpm |
| Number of single turn-on | 15 rpm |
| The closed height | 680 mm |
| Adjustment | 200 mm |
| Under-forging plate | |
| From left to right | 1250 mm |
| From front to rear | 1250 mm |
| Thickness | 260 mm |
| Slider overall dimensions | 1250 x 1250 mm |
| Aperture in a table | 800 x 800 mm |
| Window dimensions in cheeks | 1260 x 780 mm |
| Course of a rigid pusher in a slider | 70 mm |
| Force of a rigid pusher in a slider ton-force | 50 |
| Main electric motor power | 75 kW |
| Course of pneumatic pillow | 160 mm |
| Force of pushing out of a pneumatic pillow ton-force | 40 |
| Hydro-pneumatic pillow | |
| Working course | 125 mm |
| Force of pushing out ton-force | 12 |
| Force of a clip ton-force | 125 |
| Press overall dimensions | 4310 x 3870 x 6790 mm |
| Press weight | 77100 kg |
