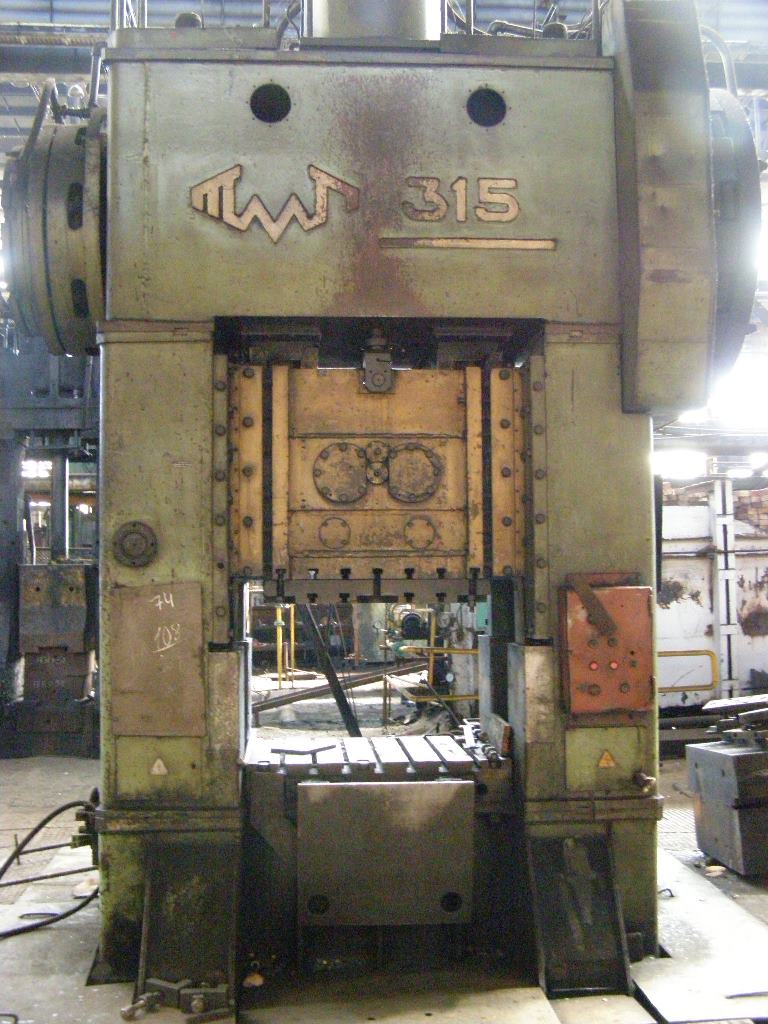

トリミングプレス TMP Voronezh KA9035 - 315 トン
仕様 (EN) -
トリミングプレス TMP Voronezh KA9035 - 315 トン (ID: S87691)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | KA9035 |
| Nominal capacity | 315 ton |
| Slide stroke | 250 mm |
| Rated distance of slide above bottom | 8 mm |
| Continuous run frequency | 50 / min-1 |
| Shut height | 600 mm |
| Shut height adjustment | 20 mm |
| Slide dimensions | 1230 x 800 mm |

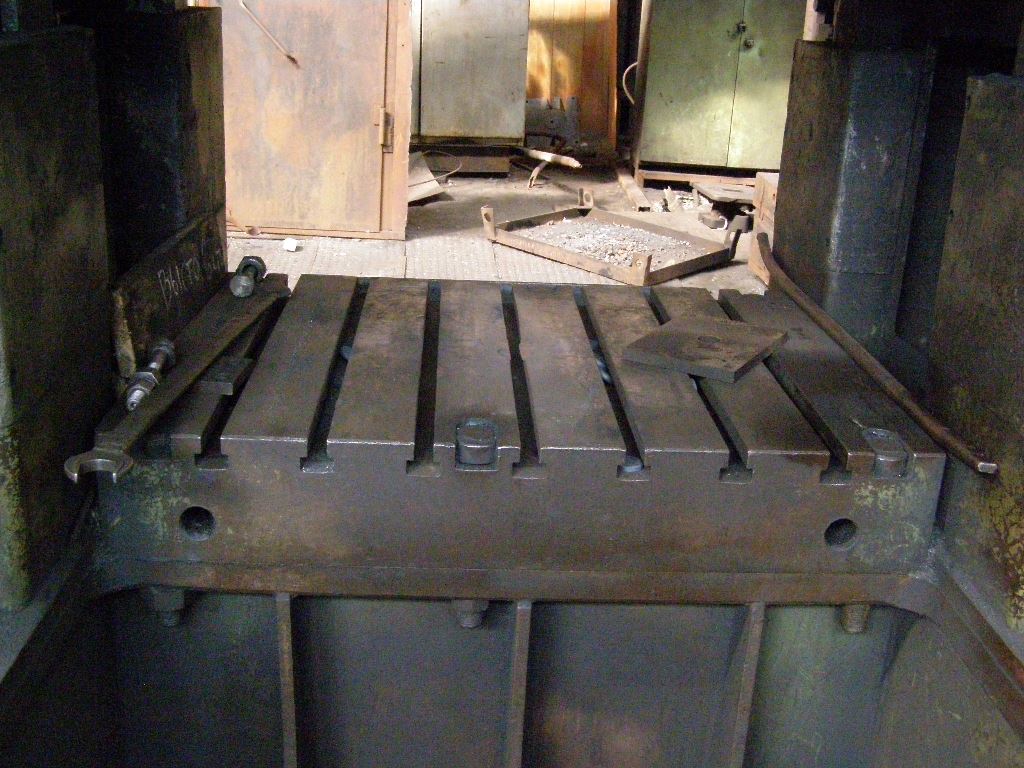

| Bolster plate dimensions | 1250 x 900 mm |
| Main motor power | 30 kW |
| Overall dimensions | 4080 x 3040 x 5105 mm |
