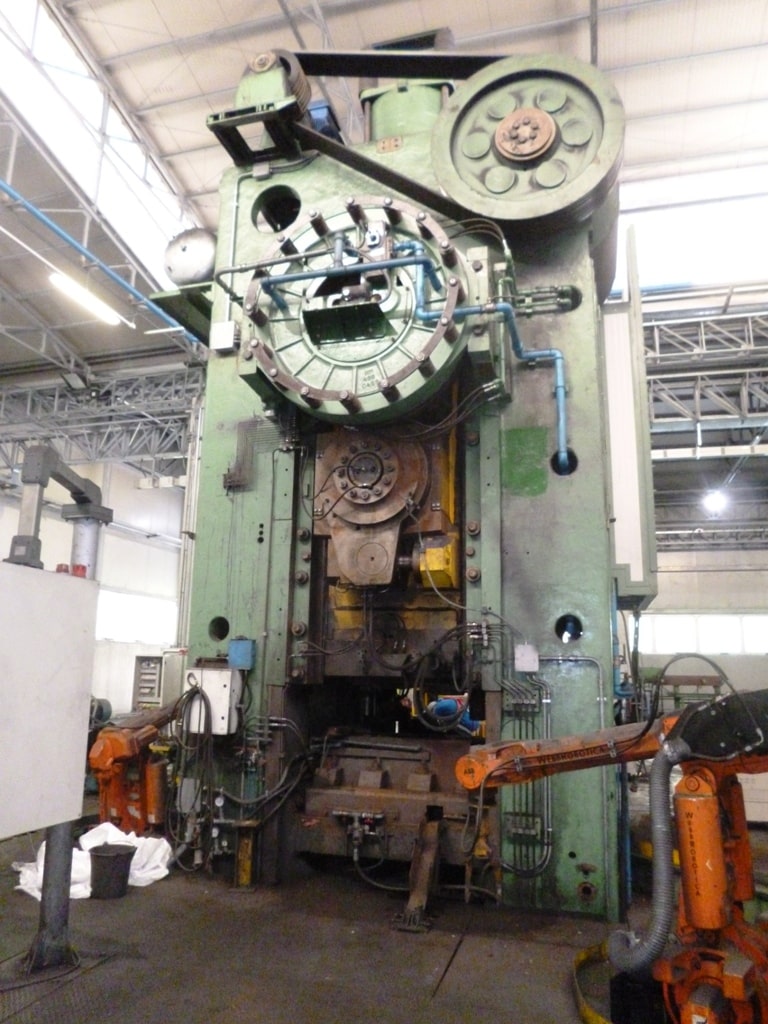

熱間鍛造プレス Smeral LZK 4000 B - 4000 トン
仕様 (EN) -
熱間鍛造プレス Smeral LZK 4000 B - 4000 トン (ID: 75727)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 4000 B |
| Rated force | 4000 ton |
| Shut height | 1000 mm |
| Slide stroke | 380 mm |
| Slide strokes per min | 60 |
| Max distance between slider and bed | 1580 mm |
| Width of bed under guide lines | 1580 mm |
| Bed dimensions | 1520 x 1600 mm |
| Slider dimensions | 1470 x 1500 mm |
| Slider adjustment | 20 mm |
| Quantity of used strokes per min | 20 |
| Stroke of middle lower extractor | |
| Working | 31 mm |
| Max (for die changing) | 41,5 mm |
| Stroke of upper extractor | 70 mm |
| Working air pressure | 6 atm |
| Overall air expense | 660 l/stroke |
| Water expense | 16 l/min |
| Dimensions (L x l x h) | 4656 x 4400 x 8570 mm |
| Overall weight | 250 ton |
| Drive capacity | 200 kW |
